Overview
Ideal for work in lower density soils and light materials.

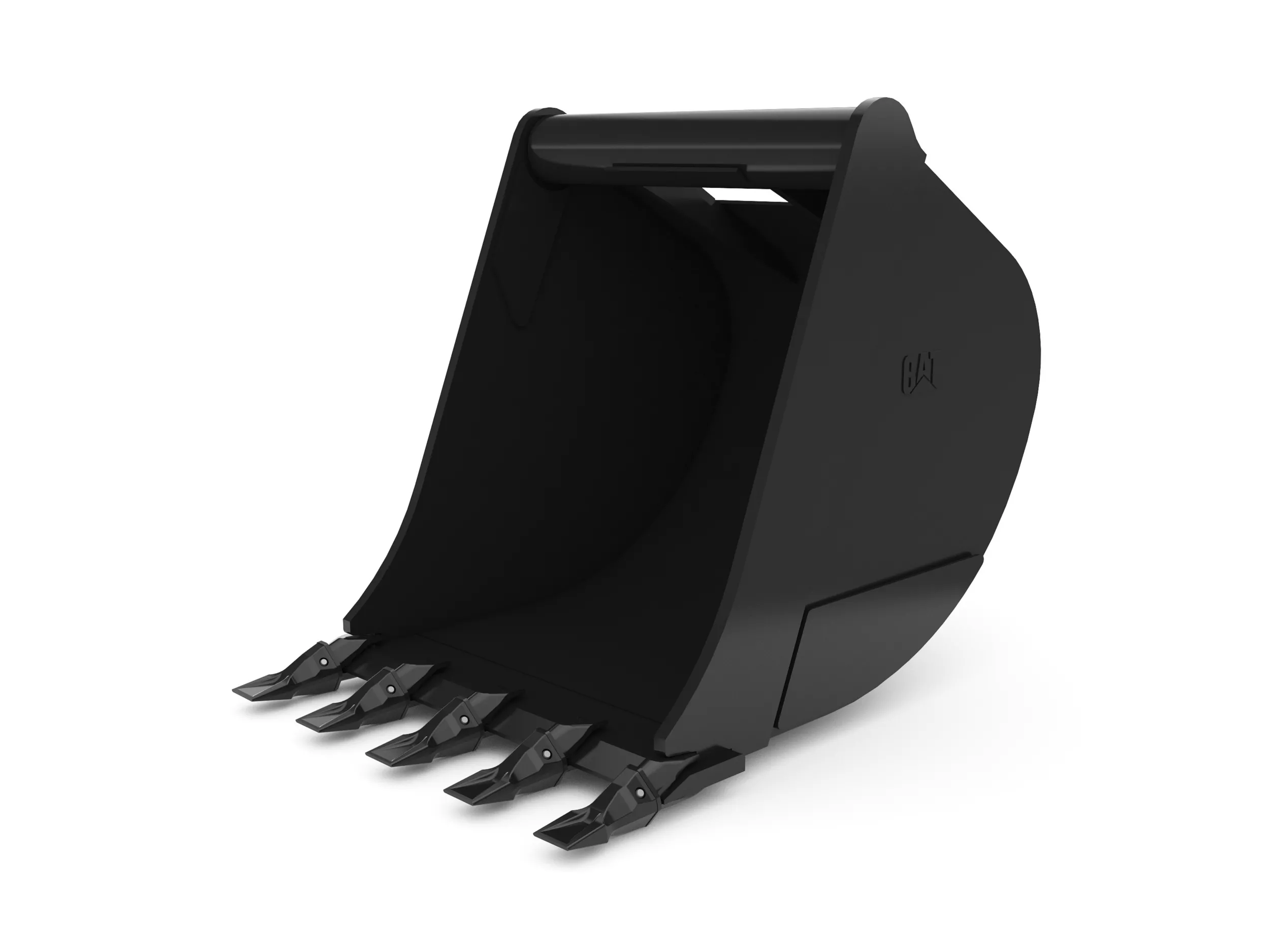

High Capacity Buckets 762 mm (30 in), 360 L (12.7 ft3), Pin Lock, Weld-On Adapters
Request A Price Shop NowKey Specs
- Width
- 30 in
- 762 mm
- Capacity
- 12.7 ft³
- 360 l
- Weight
- 489.4 lb
- 222 kg
Features At A Glance
Application
Well suited for work in lower density soils and light materials. Cat® High Capacity Buckets have the same durable characteristics as heavy duty buckets but are capable of moving greater volumes.
Bucket Shape
Enhanced bucket shape allows material to flow more easily. Tapered bucket sidewalls allow for easy dumping of sticky material.
Rugged Design
Cat® Buckets are designed for superior productivity, reliability and long life.
Product Specifications for 762 mm (30 in), 360 L (12.7 ft3), Pin Lock, Weld-On Adapters
| Width | 30 in 762 mm |
| Capacity | 12.7 ft³ 360 l |
| Weight | 489.4 lb 222 kg |
| Base Edge Thickness | 1 in 25 mm |
| Tip Radius | 42.7 in 1084 mm |
| Interface Type | Pin Lock Pin Lock |
See how 762 mm (30 in), 360 L (12.7 ft3), Pin Lock, Weld-On Adapters compares against frequently compared products.
Buckets - Backhoe Rear
762 mm (30 in), 360 L (12.7 ft3), Pin Lock, Weld-On Adapters
Selected
- Width
- 30 in
- 762 mm
- Capacity
- 12.7 ft³
- 360 l
- Weight
- 489.4 lb
- 222 kg
Buckets - Backhoe Rear
762 mm (30 in), 312 L (11 ft3), Pin On, Weld-On Adapters
- Width
- 30 in
- 762 mm
- Capacity
- 11 ft³
- 311.5 l
- Weight
- 465.2 lb
- 211 kg
Buckets - Backhoe Rear
914 mm (36 in), 397 L (14 ft3), Pin On, Weld-On Adapters
- Width
- 36 in
- 914 mm
- Capacity
- 14 ft³
- 396.5 l
- Weight
- 515.9 lb
- 234 kg
