Overview
Ideal for semi-rocky soil or where hard bank material must be broken out and removed.

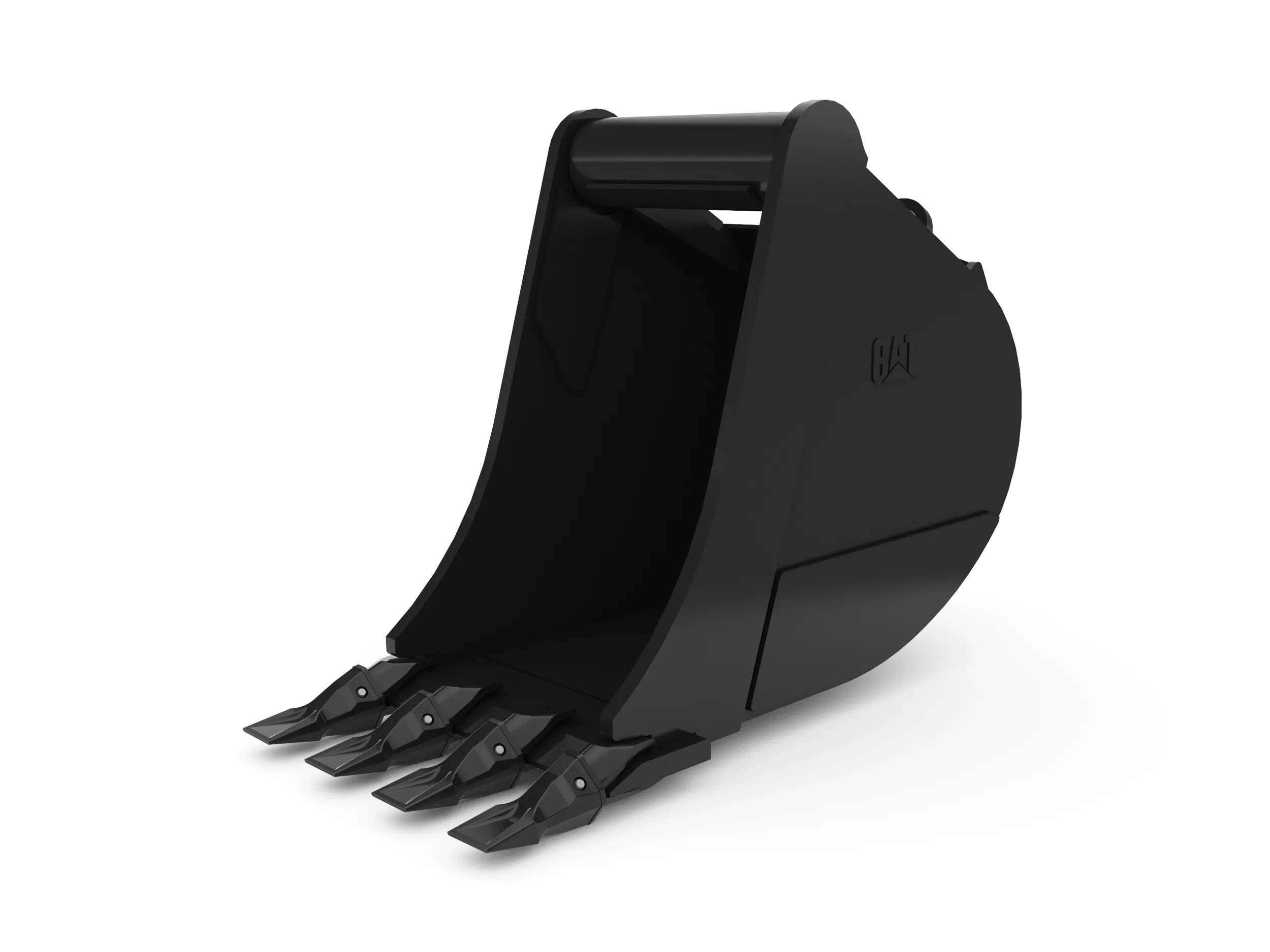

Heavy Duty Buckets 457 mm (18 in), 139 L (4.9 ft3), Pin Lock, Weld-On Adapters
Request A Price Shop NowKey Specs
- Width
- 18 in
- 457 mm
- Capacity
- 4.9 ft³
- 139 l
- Weight
- 304.2 lb
- 138 kg
Features At A Glance
Application
Cat® Heavy Duty Buckets are well suited for semi-rocky soil or where hard bank material must be broken out and removed. Ideal for utility trenching, digging footings, back-filling and general excavating in construction, landscaping and utility applications.
Bucket Shape
Enhanced bucket shape allows material to flow more easily. Tapered bucket sidewalls allow for easy dumping of sticky material.
Rugged Design
Cat Buckets are designed for superior productivity, reliability and long life.
Product Specifications for 457 mm (18 in), 139 L (4.9 ft3), Pin Lock, Weld-On Adapters
| Width | 18 in 457 mm |
| Capacity | 4.9 ft³ 139 l |
| Weight | 304.2 lb 138 kg |
| Base Edge Thickness | 1 in 25 mm |
| Tip Radius | 32.7 in 830 mm |
| Interface Type | Pin Lock Pin Lock |
See how 457 mm (18 in), 139 L (4.9 ft3), Pin Lock, Weld-On Adapters compares against frequently compared products.
Buckets - Backhoe Rear
457 mm (18 in), 139 L (4.9 ft3), Pin Lock, Weld-On Adapters
Selected
- Width
- 18 in
- 457 mm
- Capacity
- 4.9 ft³
- 139 l
- Weight
- 304.2 lb
- 138 kg
Buckets - Backhoe Rear
406 mm (16 in), 105 L (3.7 ft3), Pin On, Weld-On Adapters
- Width
- 16 in
- 406 mm
- Capacity
- 3.7 yd³
- 105 m³
- Weight
- 280 lb
- 127 kg
Buckets - Backhoe Rear
457 mm (18 in), 127 L (4.5 ft3), Pin On, Weld-On Adapters
- Width
- 18 in
- 457 mm
- Capacity
- 4.5 ft³
- 127.4 l
- Weight
- 335.1 lb
- 152 kg
assignment Product Brochures and More Are Ready to Download!
Caterpillar product brochures and other informational documents are available for your growing business.
Media Gallery
Photos
Videos

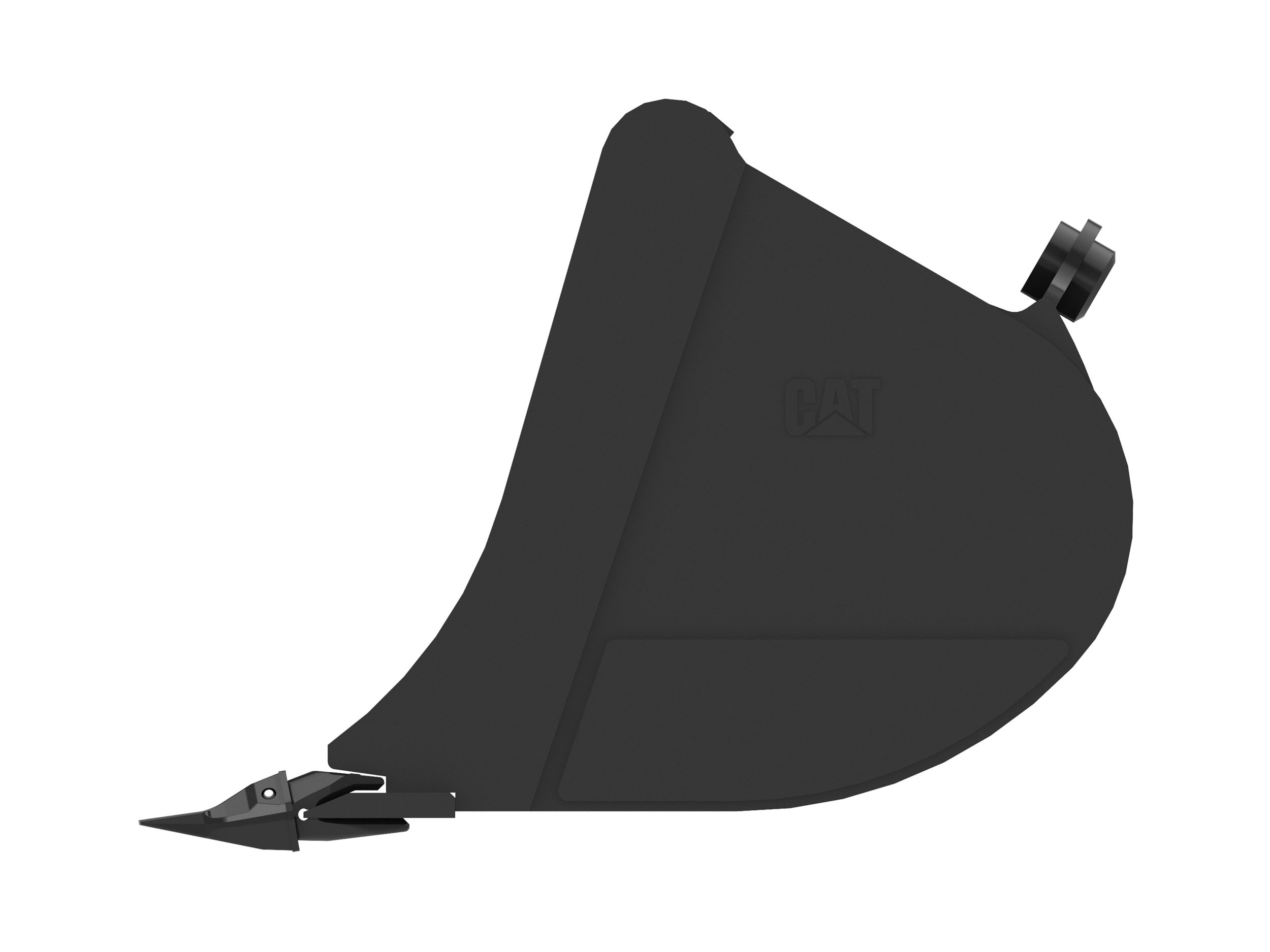

Studio Shot

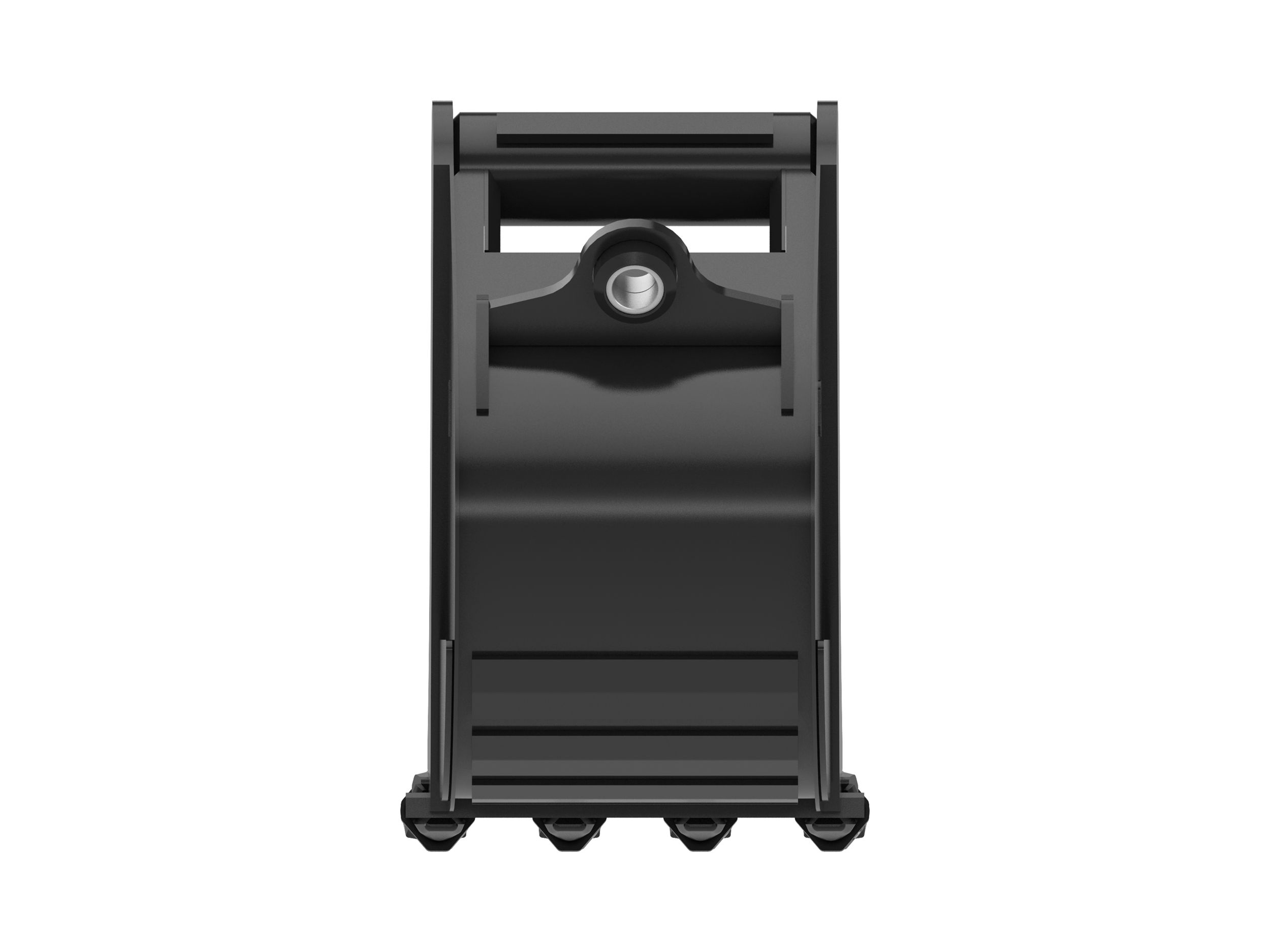

Front View

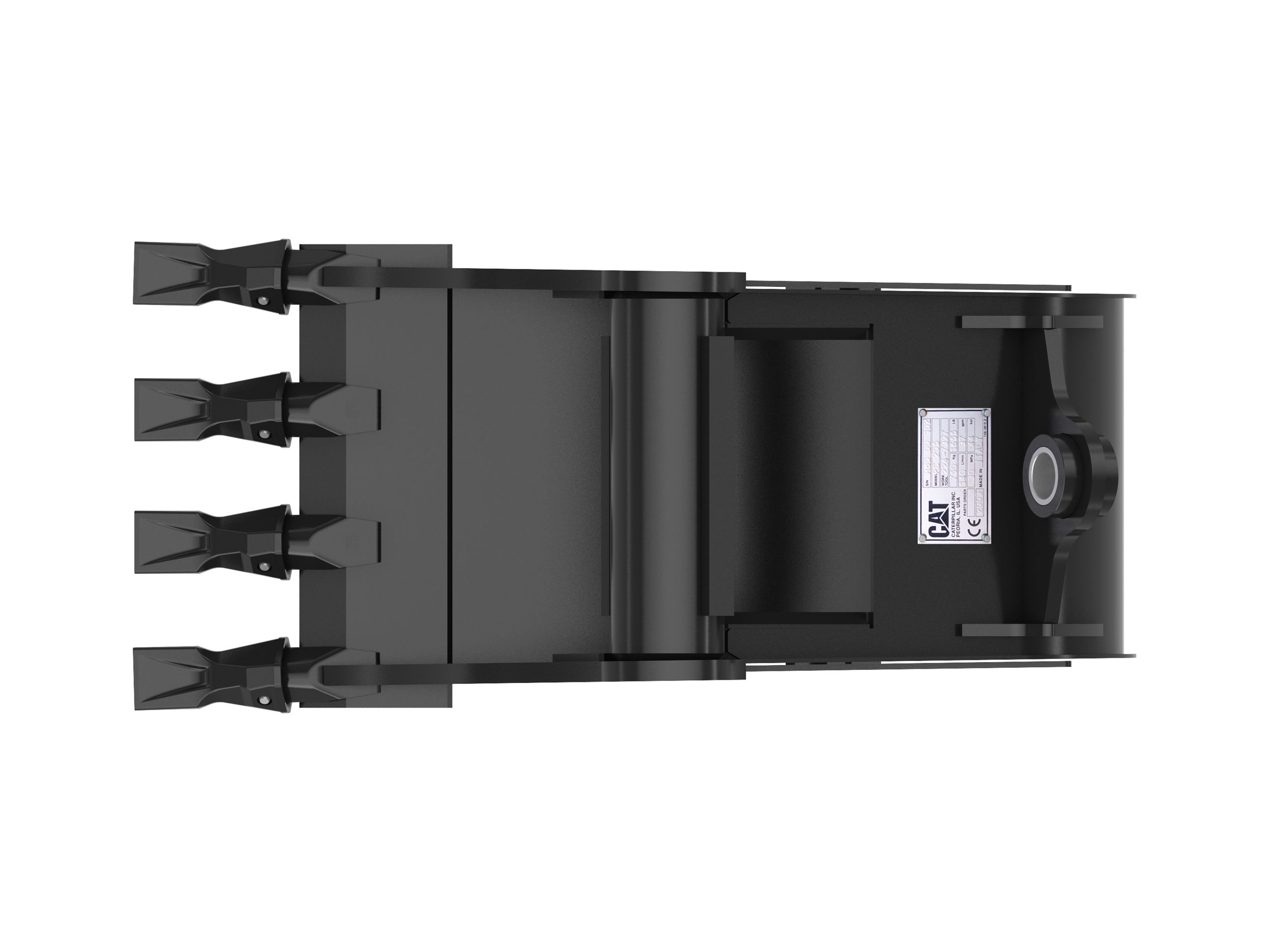

Top View
Left View

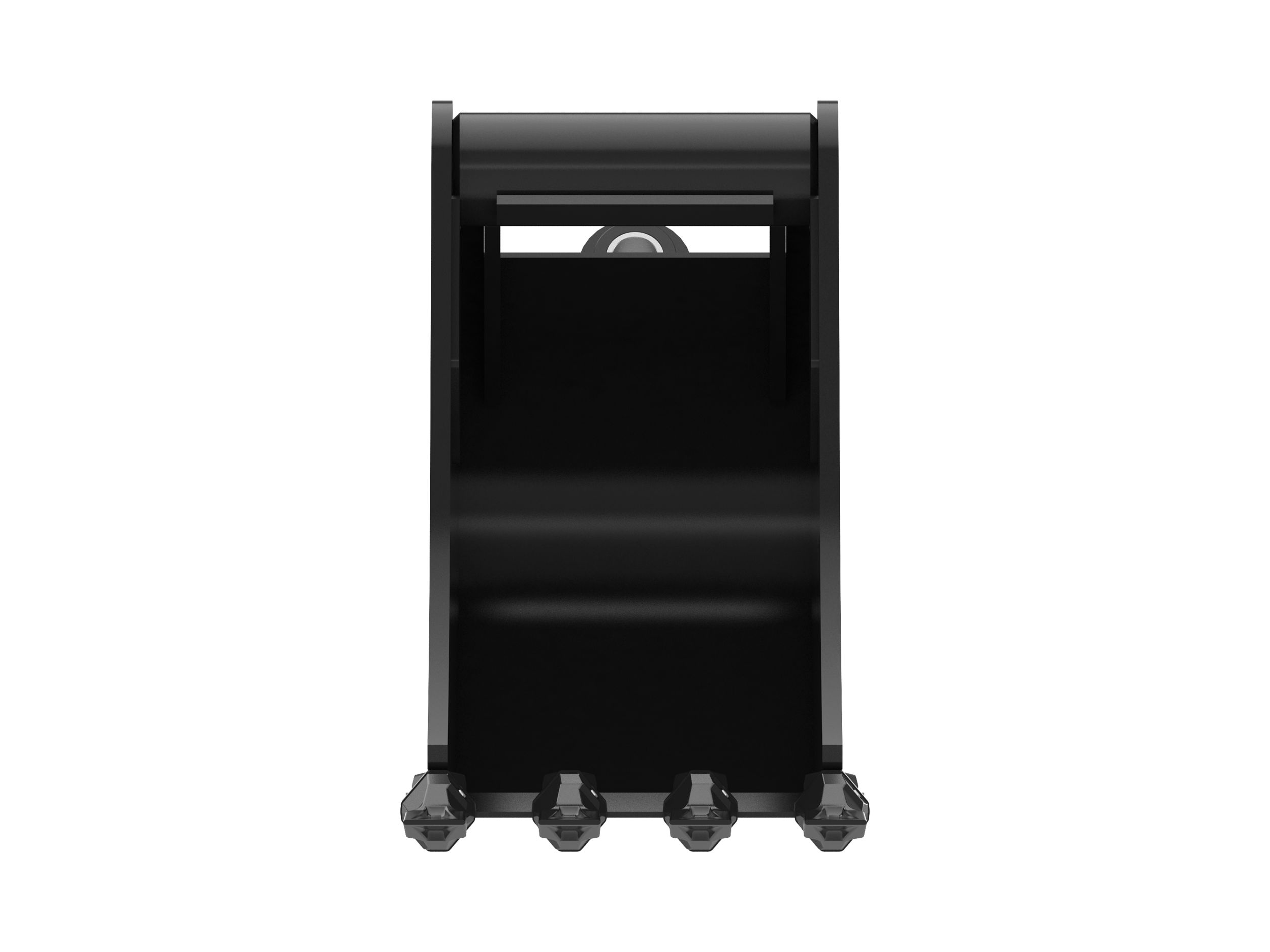

Rear View

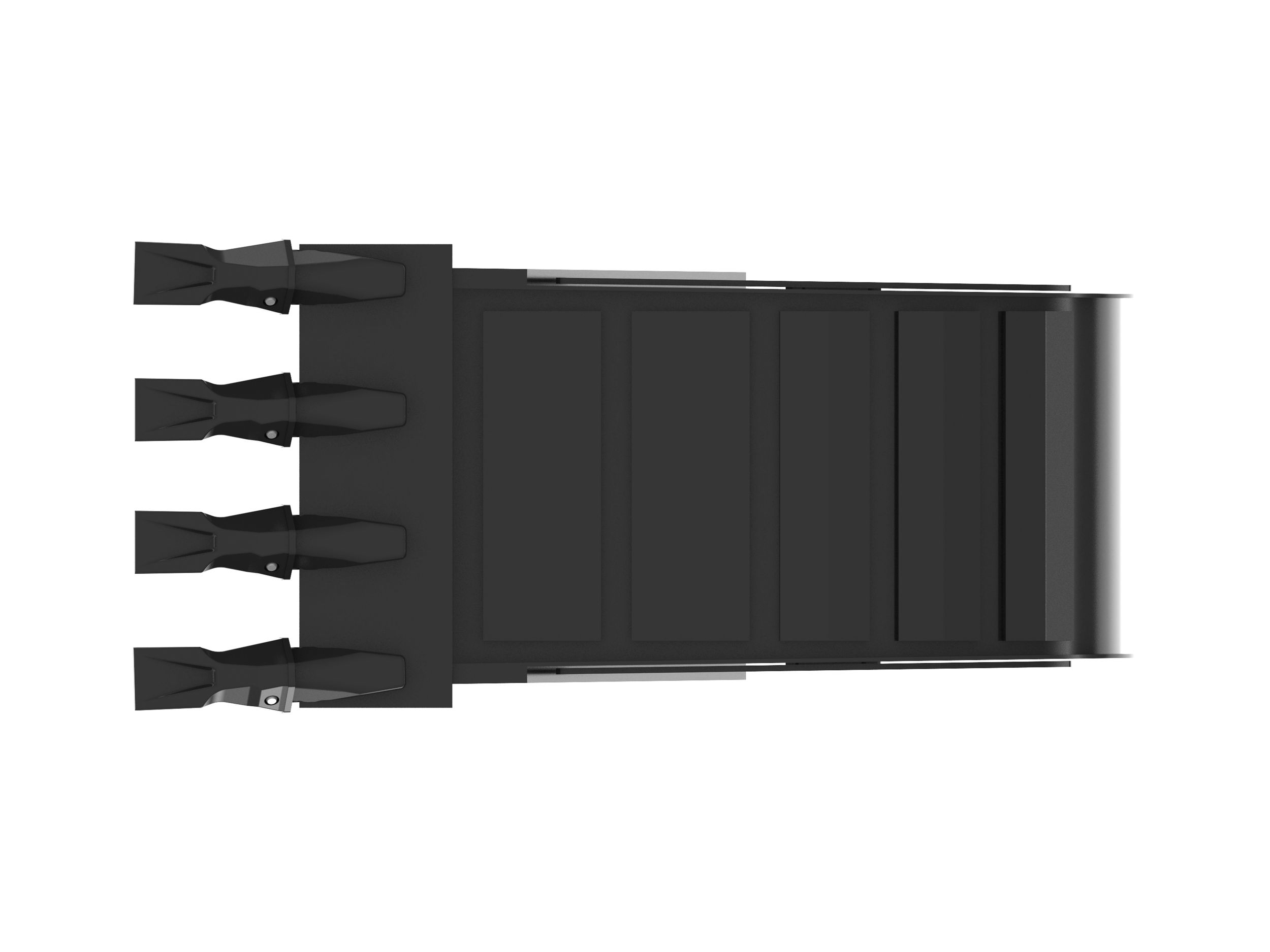

Bottom View
