Overview
Ideal for semi-rocky soil or where hard bank material must be broken out and removed.

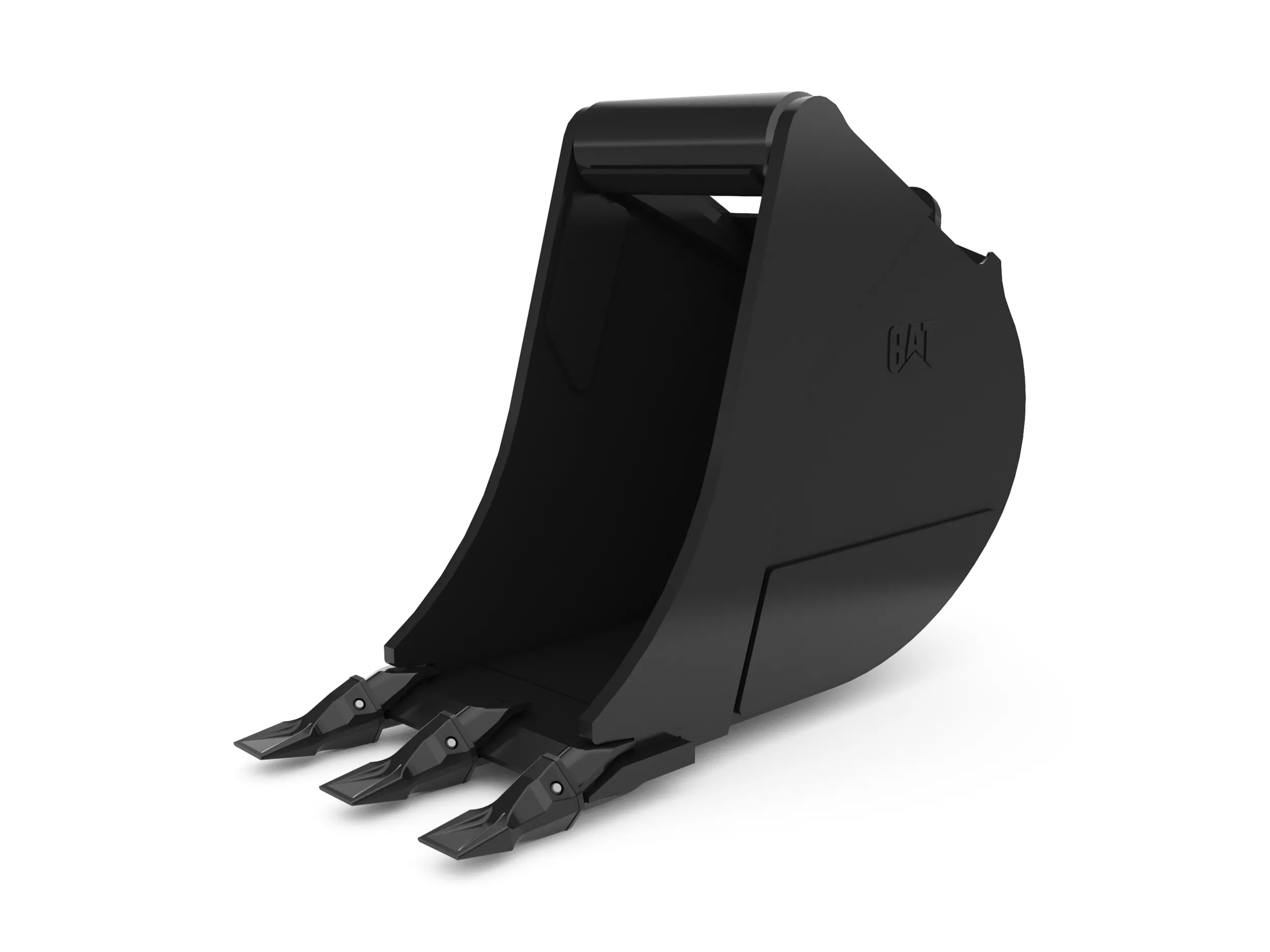

Heavy Duty Buckets 406 mm (16 in), 120 L (4.2 ft3), Pin Lock, Weld-On Adapters
Request A Price Shop NowKey Specs
- Width
- 16 in
- 406 mm
- Capacity
- 4.2 ft³
- 120 l
- Weight
- 297.6 lb
- 135 kg
Features At A Glance
Application
Cat® Heavy Duty Buckets are well suited for semi-rocky soil or where hard bank material must be broken out and removed. Ideal for utility trenching, digging footings, back-filling and general excavating in construction, landscaping and utility applications.
Bucket Shape
Enhanced bucket shape allows material to flow more easily. Tapered bucket sidewalls allow for easy dumping of sticky material.
Rugged Design
Cat Buckets are designed for superior productivity, reliability and long life.
Product Specifications for 406 mm (16 in), 120 L (4.2 ft3), Pin Lock, Weld-On Adapters
| Width | 16 in 406 mm |
| Capacity | 4.2 ft³ 120 l |
| Weight | 297.6 lb 135 kg |
| Base Edge Thickness | 1 in 25 mm |
| Tip Radius | 32.7 in 830 mm |
| Interface Type | Pin Lock Pin Lock |
See how 406 mm (16 in), 120 L (4.2 ft3), Pin Lock, Weld-On Adapters compares against frequently compared products.
Buckets - Backhoe Rear
406 mm (16 in), 120 L (4.2 ft3), Pin Lock, Weld-On Adapters
Selected
- Width
- 16 in
- 406 mm
- Capacity
- 4.2 ft³
- 120 l
- Weight
- 297.6 lb
- 135 kg
Buckets - Backhoe Rear
305 mm (12 in), 79 L (2.8 ft3), Pin On, Weld-On Adapters
- Width
- 12 in
- 305 mm
- Capacity
- 2.8 ft³
- 79 l
- Weight
- 238.1 lb
- 108 kg
Buckets - Backhoe Rear
406 mm (16 in), 99 L (3.5 ft3), Pin On, Weld-On Adapters
- Width
- 16 in
- 406 mm
- Capacity
- 3.5 yd³
- 99 l
- Weight
- 321.9 lb
- 146 kg
