Overview
Ideal for semi-rocky soil or where hard bank material must be broken out and removed.
Heavy Duty Buckets 1226 mm (48 in), 800 L (28.3 ft3), Pin Lock, Weld-On Adapters
Request A Price Shop NowKey Specs
- Width
- 48.3 in
- 1226 mm
- Capacity
- 28.3 ft³
- 800 l
- Weight
- 1053.8 lb
- 478 kg
Features At A Glance
Application
Cat® Heavy Duty Buckets are well suited for semi-rocky soil or where hard bank material must be broken out and removed. Ideal for utility trenching, digging footings, back-filling and general excavating in construction, landscaping and utility applications.
Bucket Shape
Enhanced bucket shape allows material to flow more easily. Tapered bucket sidewalls allow for easy dumping of sticky material.
Rugged Design
Cat Buckets are designed for superior productivity, reliability and long life.
Product Specifications for 1226 mm (48 in), 800 L (28.3 ft3), Pin Lock, Weld-On Adapters
| Width | 48.3 in 1226 mm |
| Capacity | 28.3 ft³ 800 l |
| Weight | 1053.8 lb 478 kg |
| Base Edge Thickness | 1.3 in 32 mm |
| Tip Radius | 45 in 1144 mm |
| Interface Type | Pin Lock Coupler Pin Lock Coupler |
See how 1226 mm (48 in), 800 L (28.3 ft3), Pin Lock, Weld-On Adapters compares against frequently compared products.
Buckets - Backhoe Rear
1226 mm (48 in), 800 L (28.3 ft3), Pin Lock, Weld-On Adapters
Selected
- Width
- 48.3 in
- 1226 mm
- Capacity
- 28.3 ft³
- 800 l
- Weight
- 1053.8 lb
- 478 kg
Buckets - Backhoe Rear
921 mm (36 in), 500 L (17.7 ft3), Pin Lock, Weld-On Adapters
- Width
- 36.3 in
- 921 mm
- Capacity
- 17.7 ft³
- 500 l
- Weight
- 859.8 lb
- 390 kg
Buckets - Backhoe Rear
914 mm (36 in), 292 L (10.3 ft3), Pin On, Weld-On Adapters
- Width
- 36 in
- 914 mm
- Capacity
- 10.3 ft³
- 292 l
- Weight
- 416.7 lb
- 189 kg
assignment Product Brochures and More Are Ready to Download!
Caterpillar product brochures and other informational documents are available for your growing business.
Media Gallery
Photos
Videos

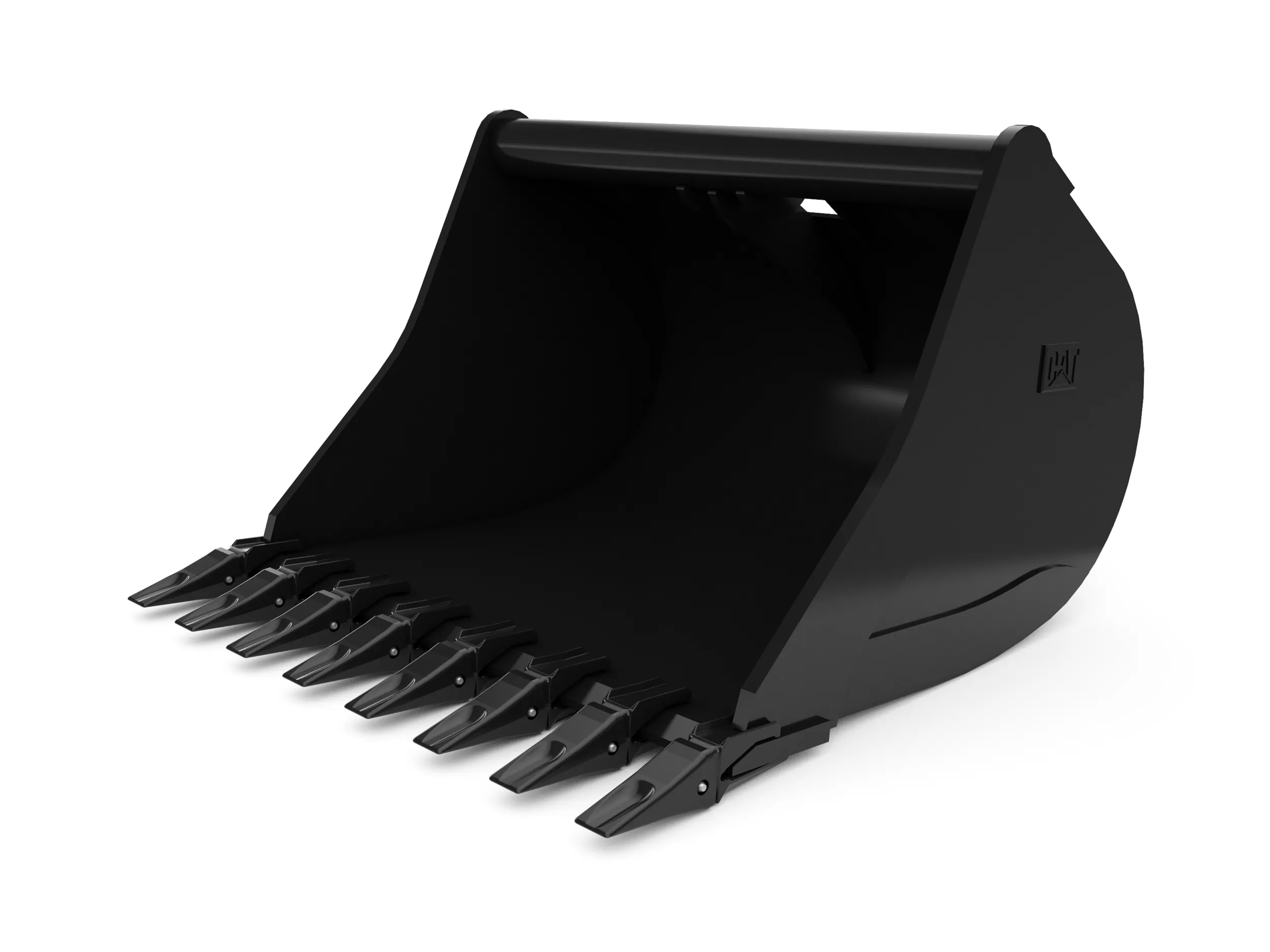

Studio Shot

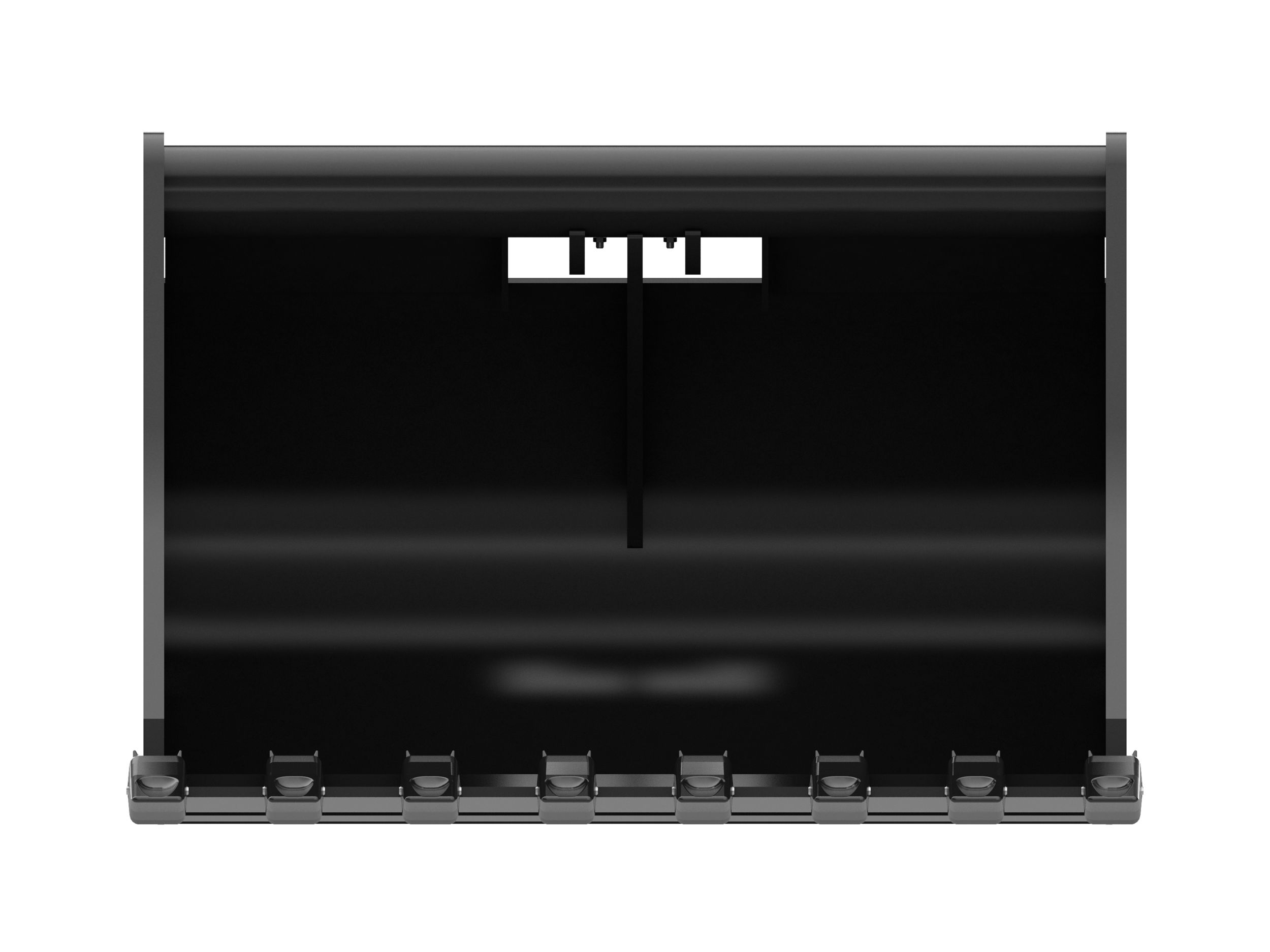

Front View

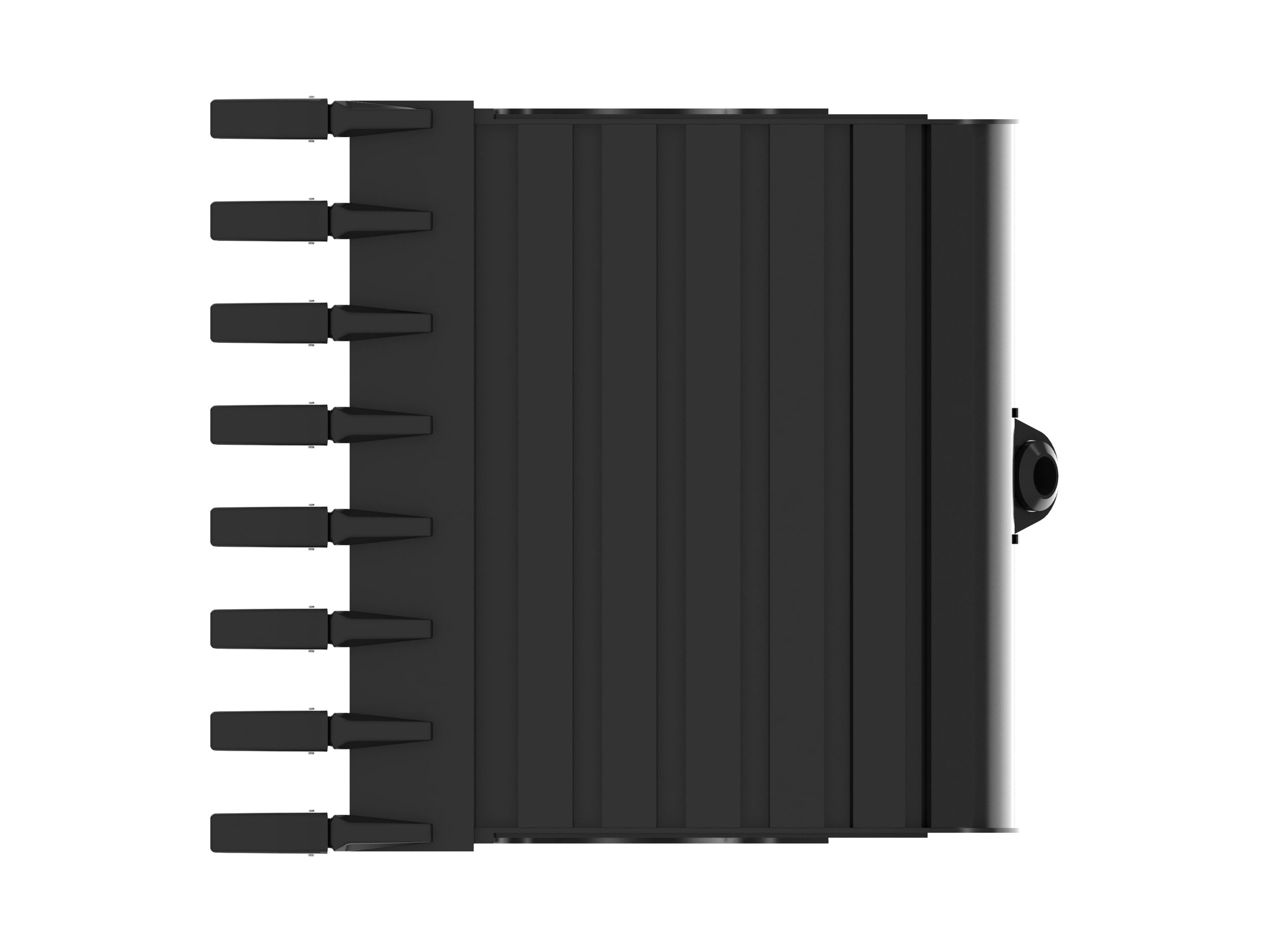

Top View

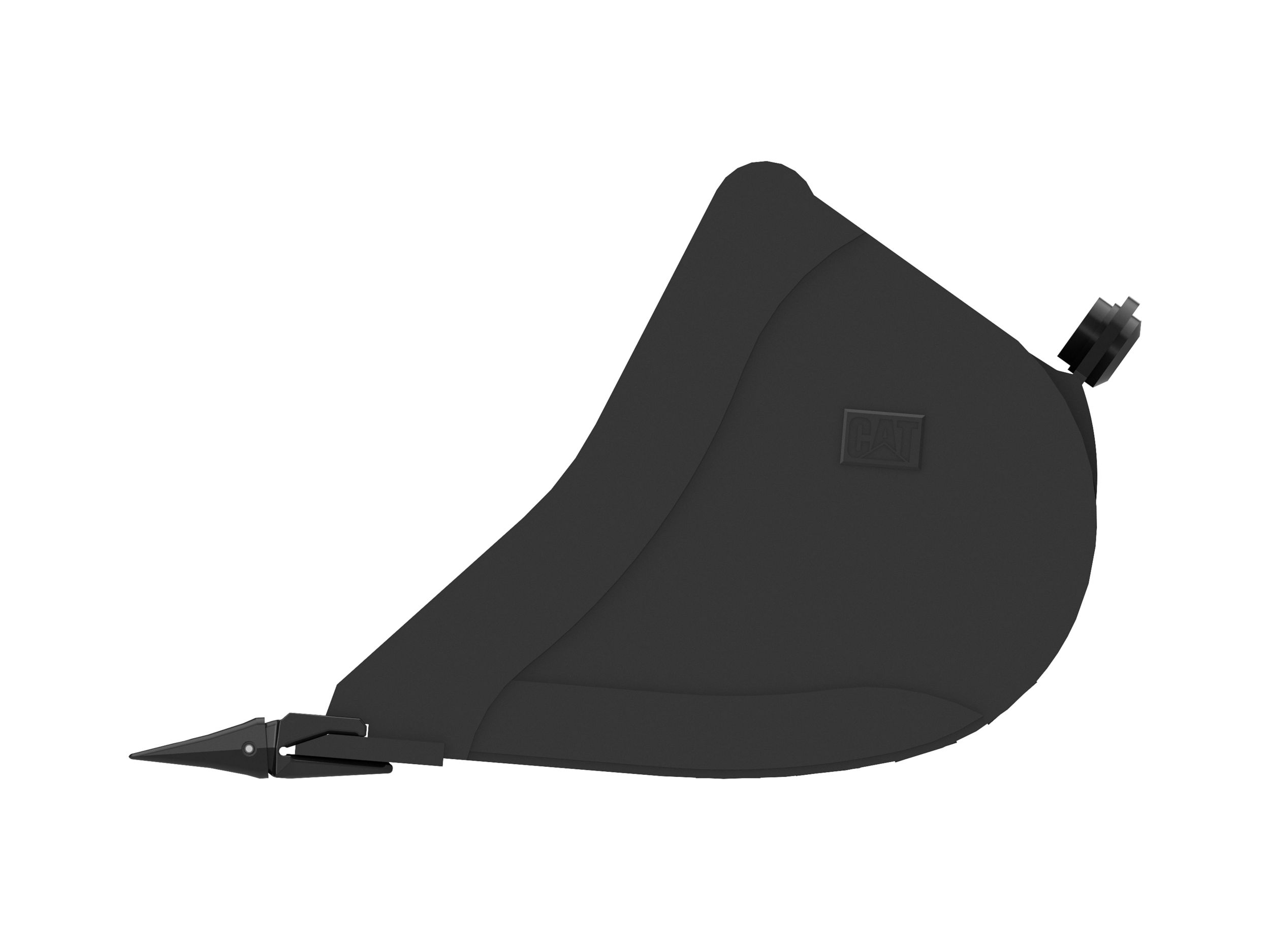

Left View

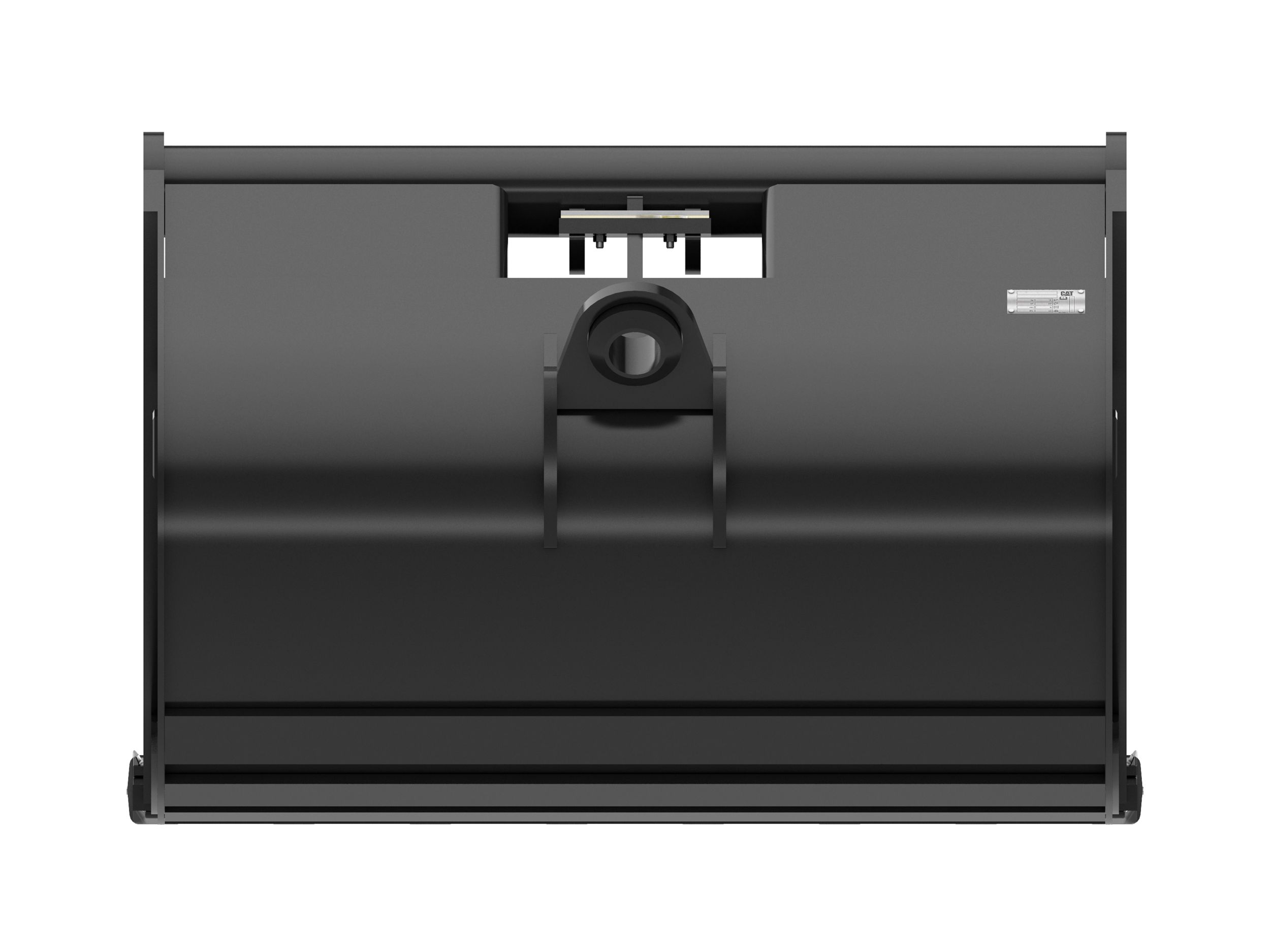

Rear View

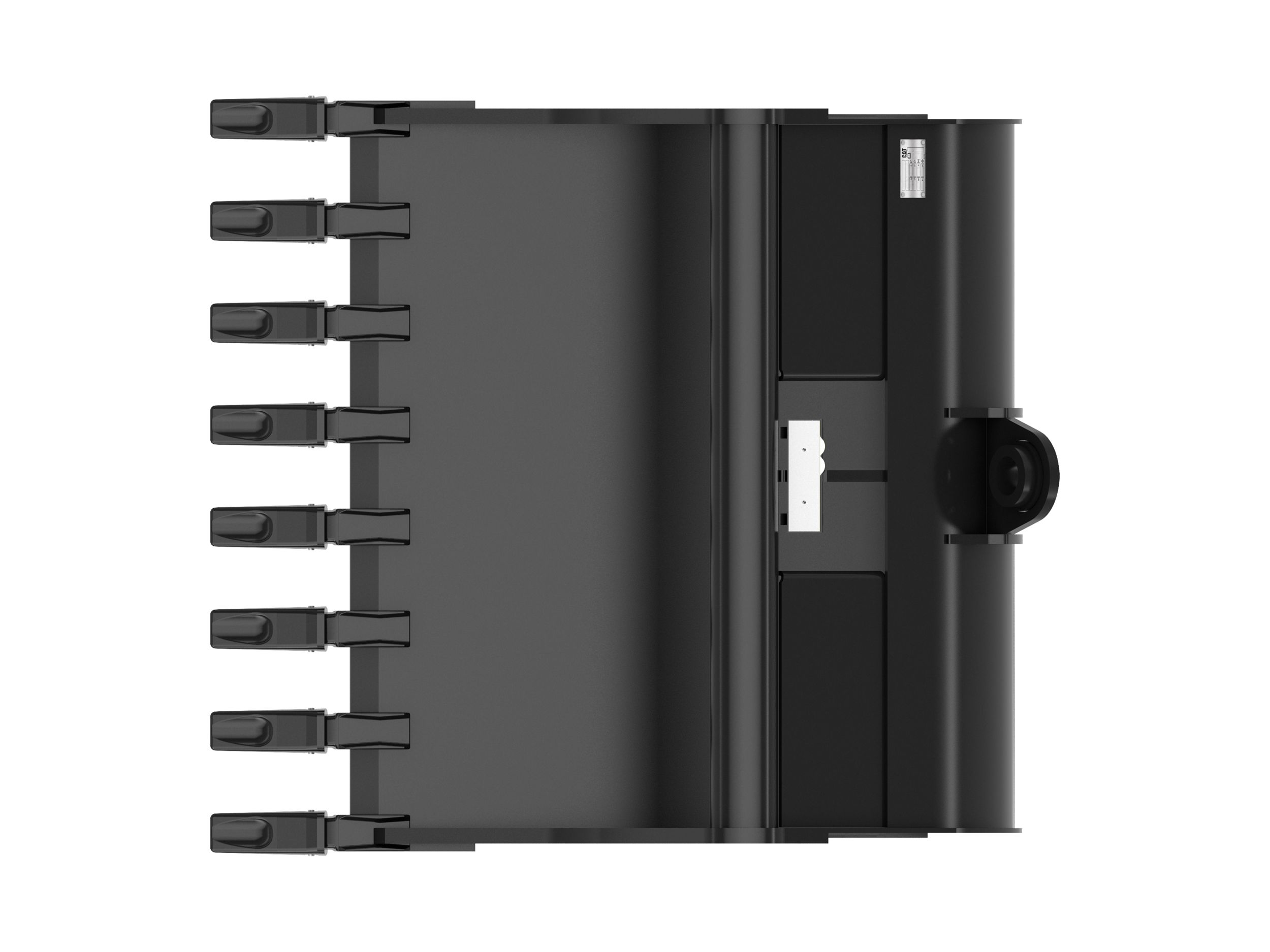

Bottom View
