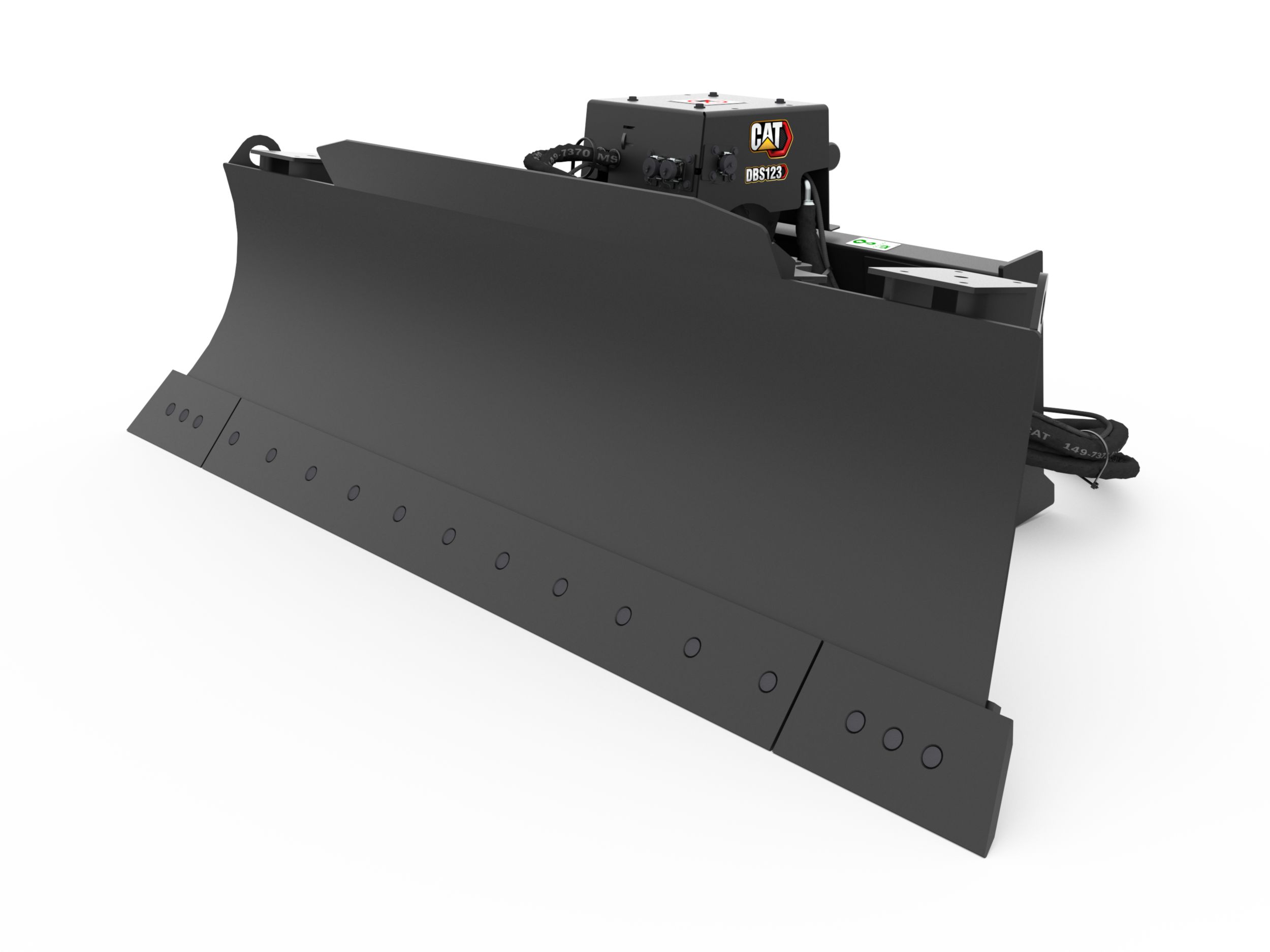

Dozer Blades 2342 mm (92 in), Smart

Request A Price Shop Now

Key Specs

Blade Width: 92 in; 2337 mm

Width - Fully Angled: 80.7 in; 2049 mm

Maximum Blade Angle - Right/Left of Center: 30 degrees; 30 degrees

2342 mm (92 in), Smart
Change model

Overview

Designed for rough and finish grading in dirt, gravel, and light dozing.

Features At A Glance

Full modulated joystick control operates the attachment with right joystick. Main functions are incorporated into the joystick for an intuitive operator experience.

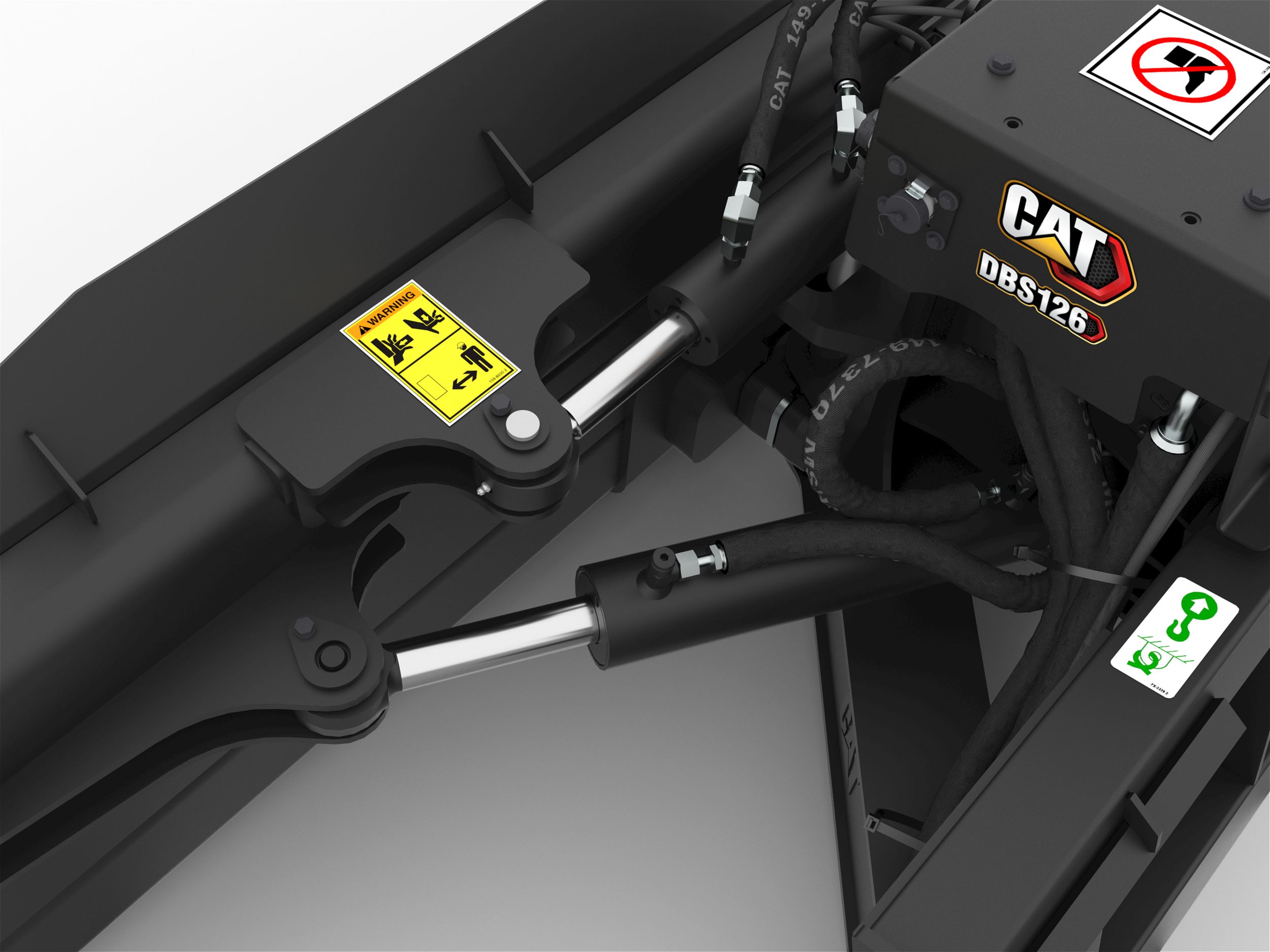

Variable Power Angle Tilt (VPAT) design with simultaneous tilt and angling capability delivers superior control and maneuverability.

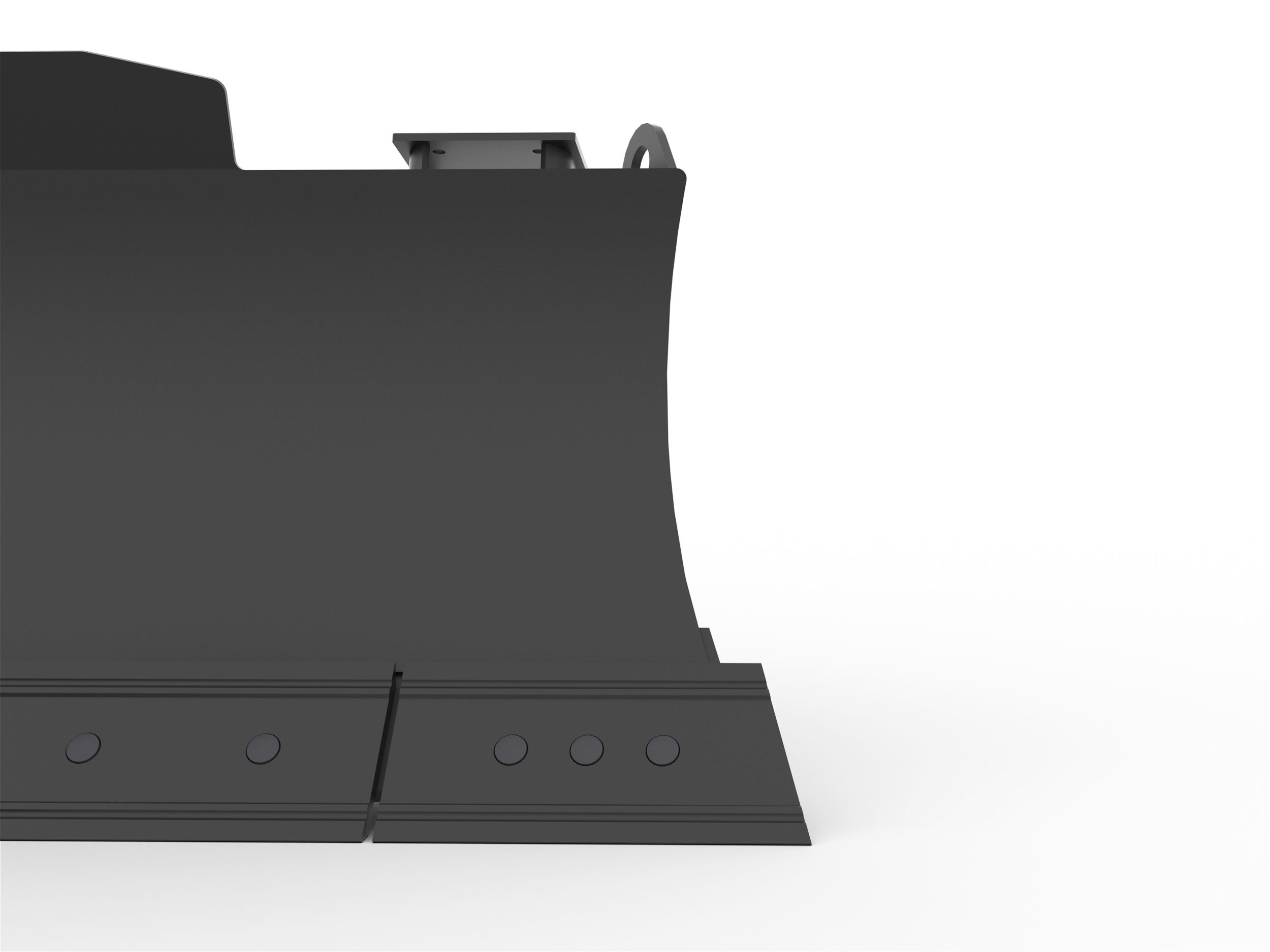

Trapezoidal blades are modeled after track-type tractor blades and allow flush cutting against a vertical surface when blade is fully tilted.

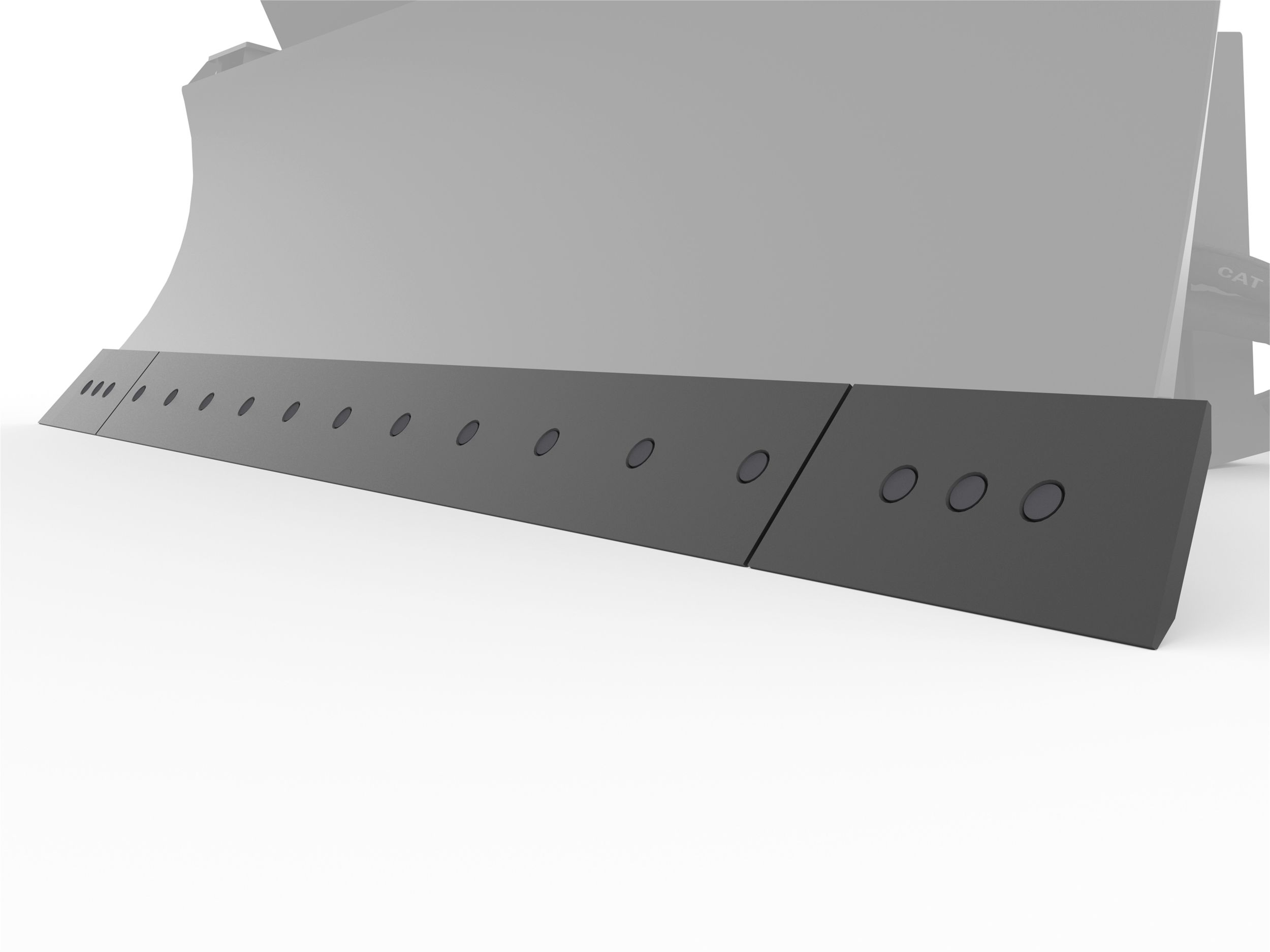

Three replaceable, bolt-on, cutting edges ensure a long service life of the blade. Wear indicator bars on cutting edges provide a visual indication of remaining cutting-edge life. Center cutting edge section can be flipped for double life.

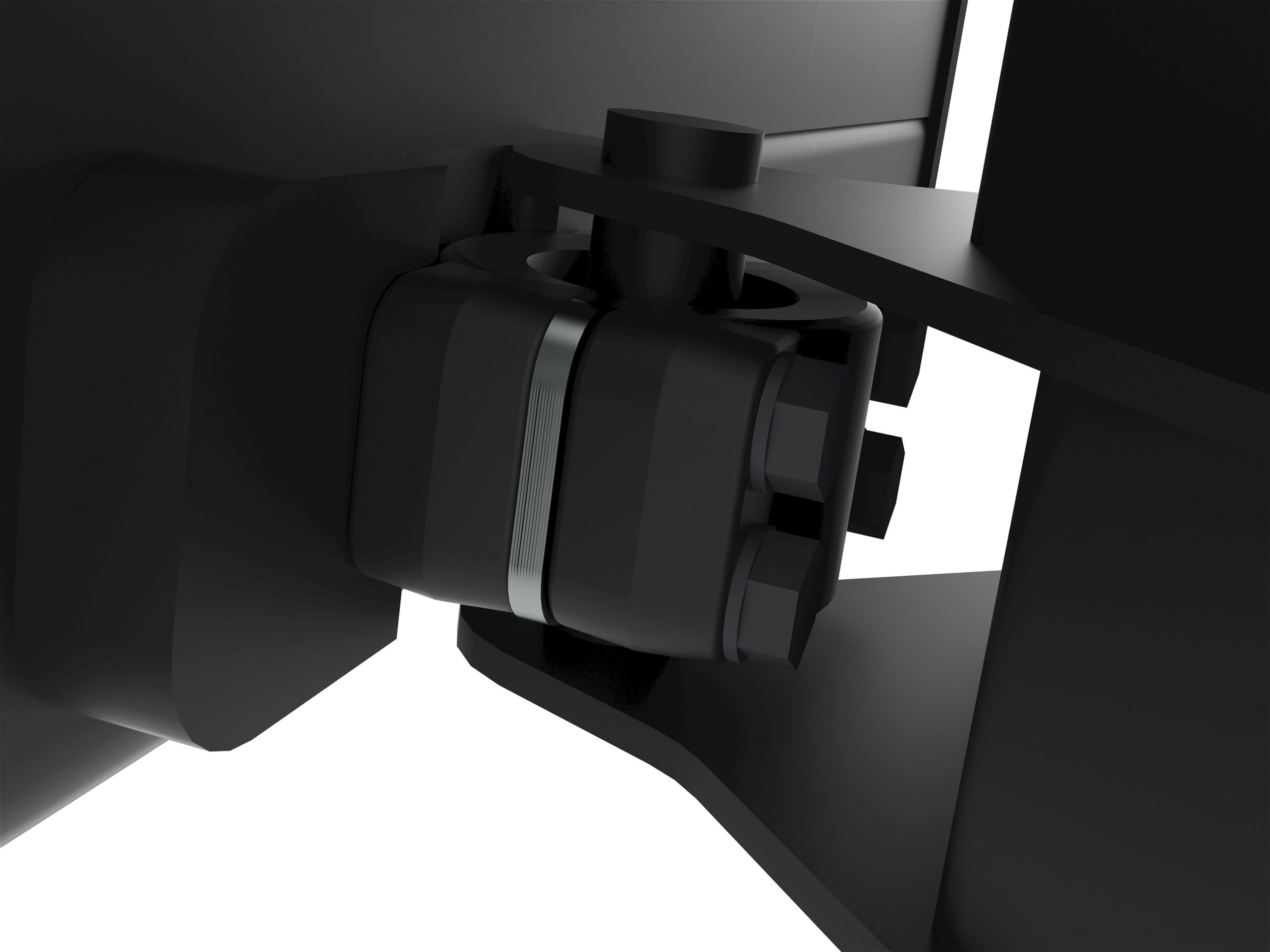

Removable shims allow adjustment for trunnion interface wear.

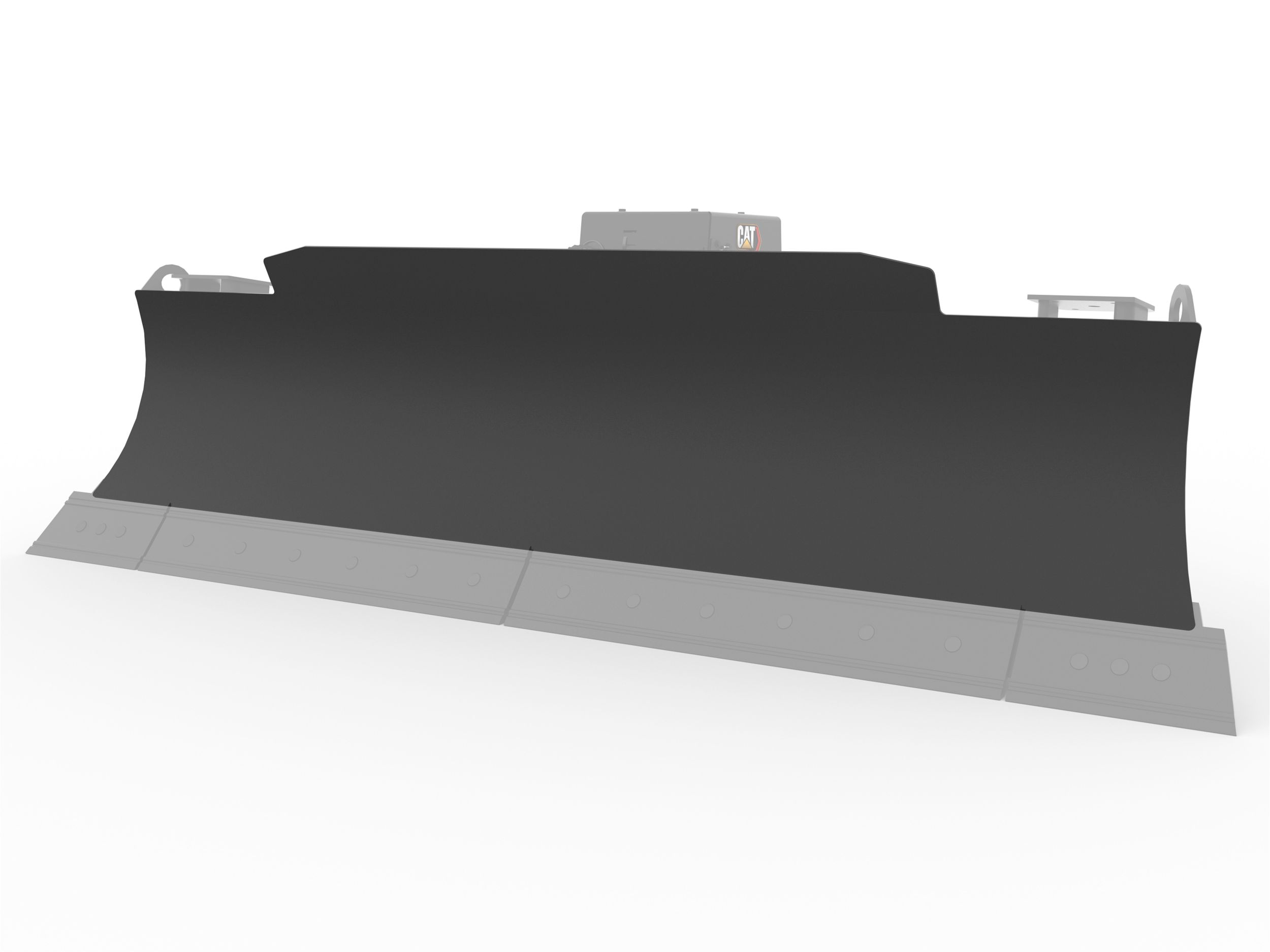

Spill guard prevents material from spilling over the top of the blade in full blade scenarios.

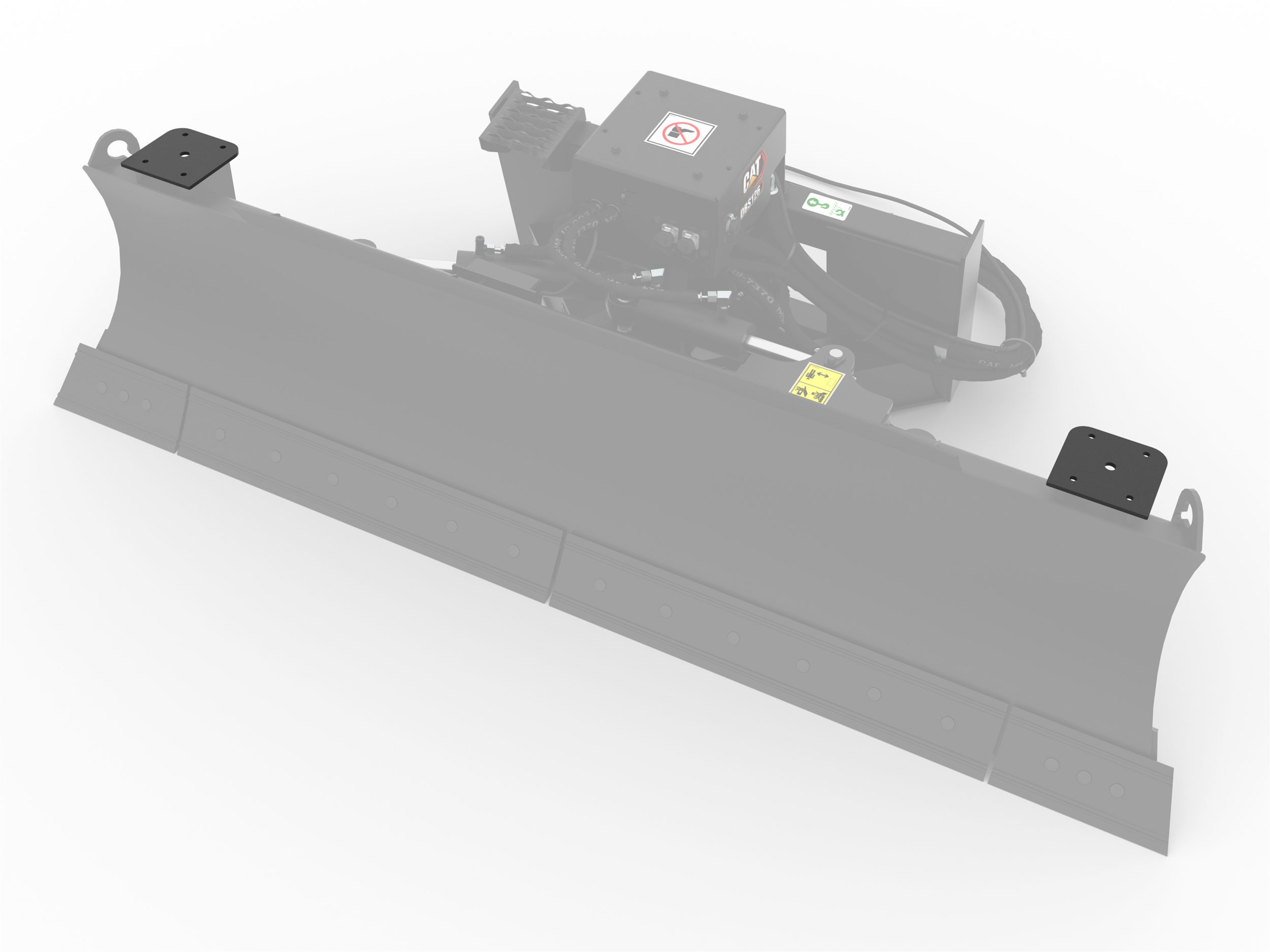

Mast mounting points accept external reference masts.

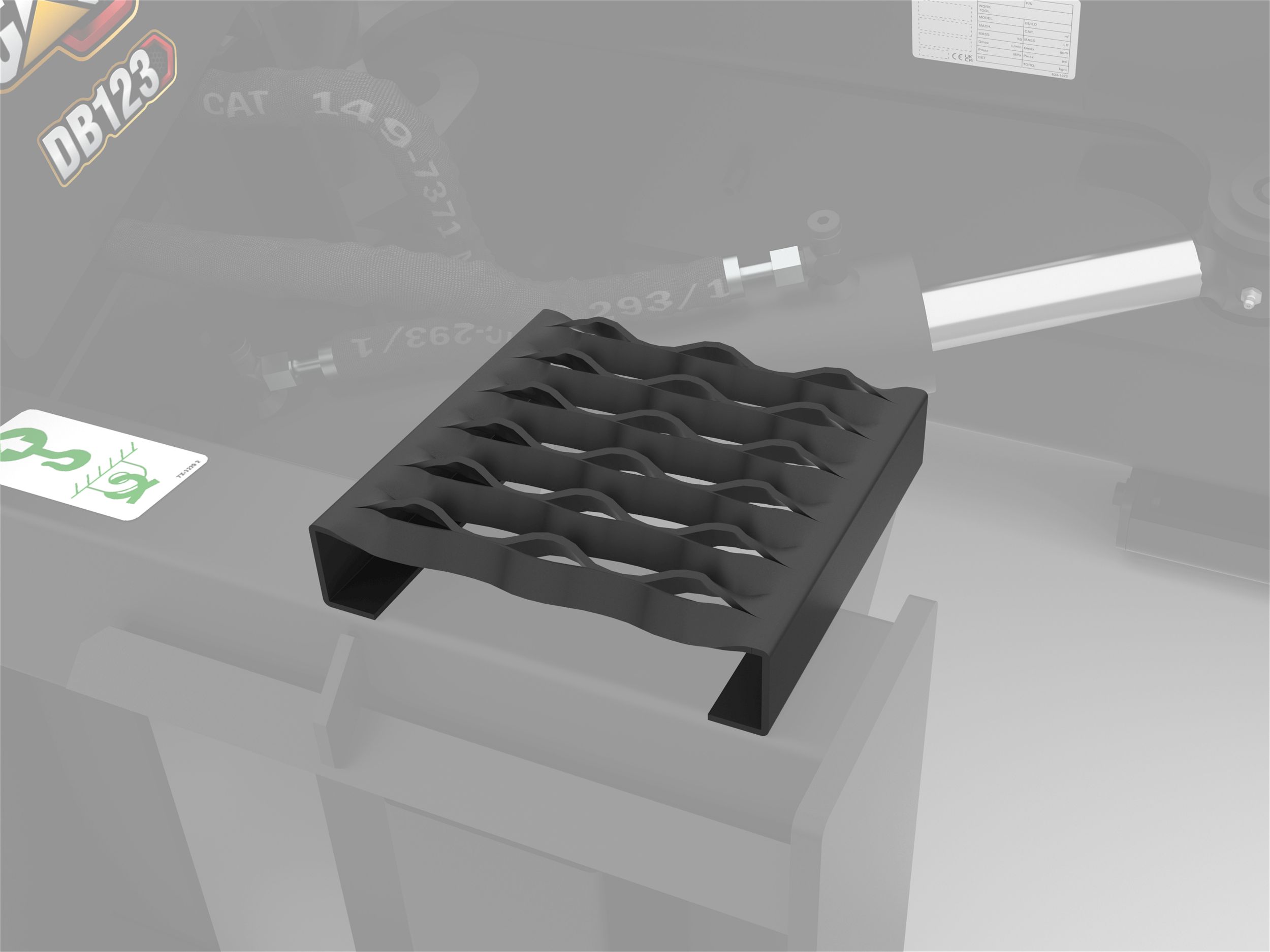

Serrated step provides safe entry and exit of machine cab.

Container stores the Operation Maintenance Manual (OMM) in a protective case on the attachment.

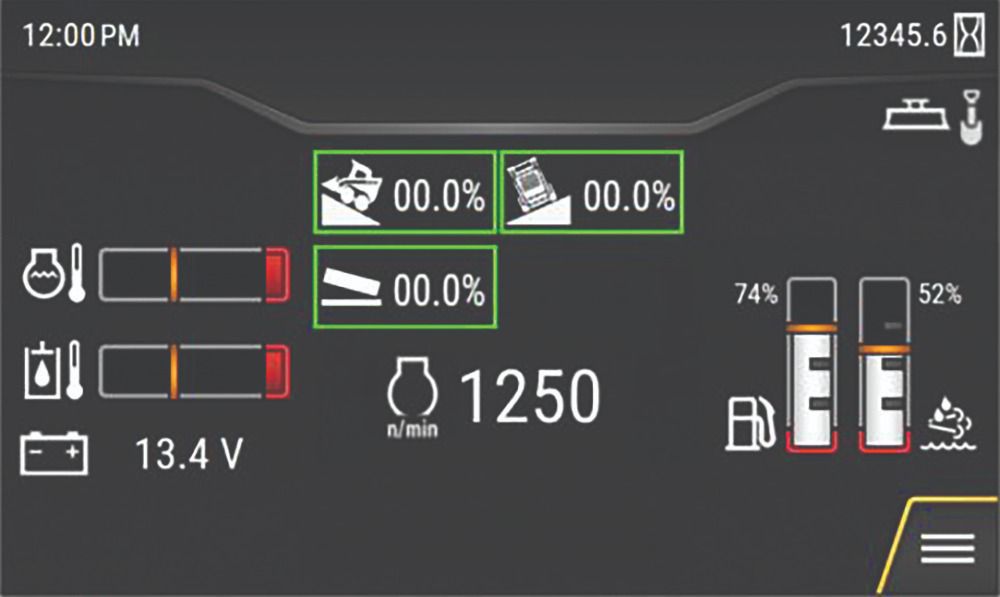

Highlighted in green:

Top left indicator: machine mainfall
Top right indicator: machine slope
Bottom left indicator: blade slope

When the assist indicators are highlighted in green, those assist features are turned on. If the indicators are grey or not selected, the assist features are off.

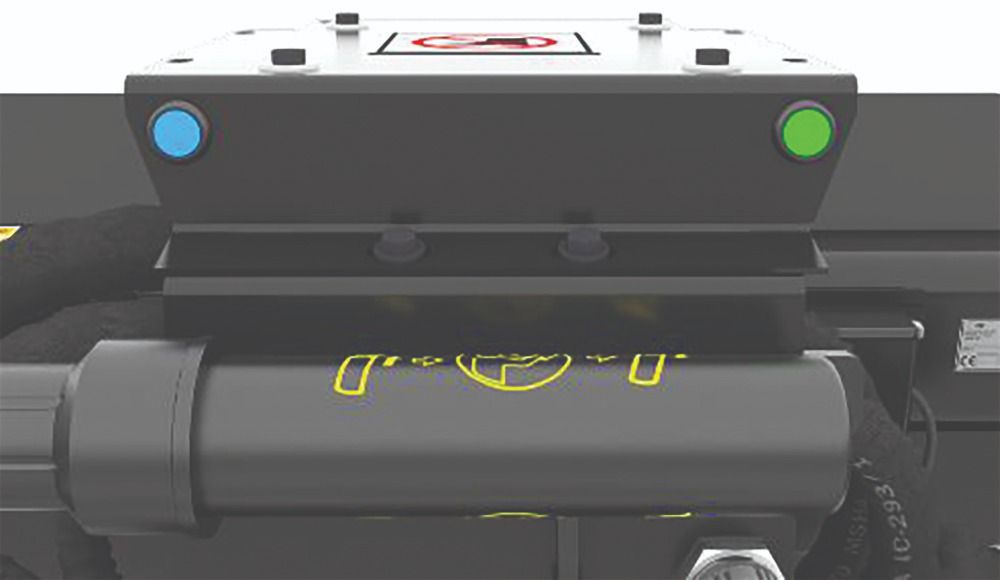

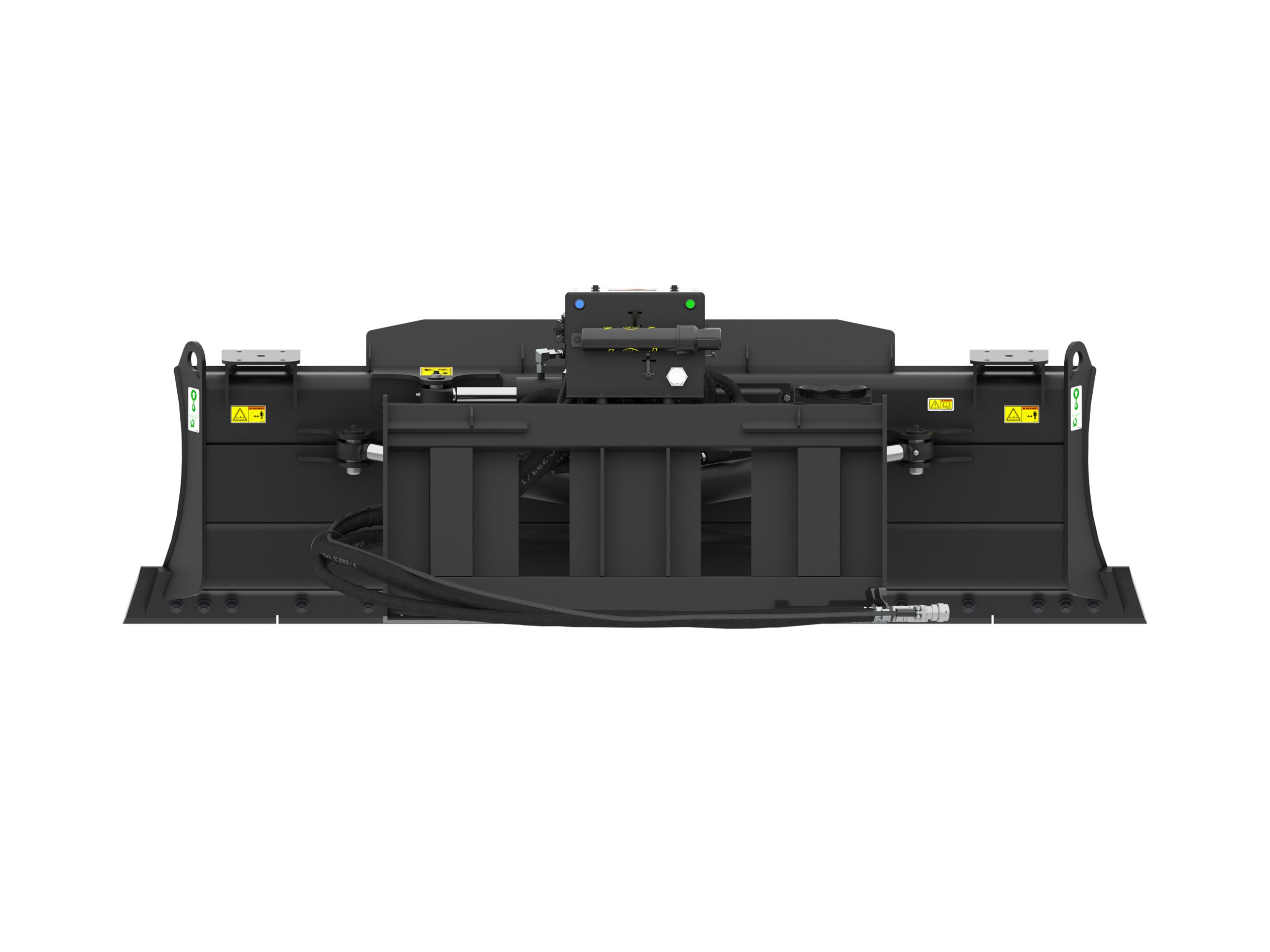

Two lights on the attachment are visible to the operator and indicate the mode of the machine/attachment combination.

Both lights on: Indicates unit is in machine control mode.
Blue (left) light only: Indicates the unit is in attachment control mode.
Green (right) light only: Indicates the unit is in attachment control mode and assist is active.

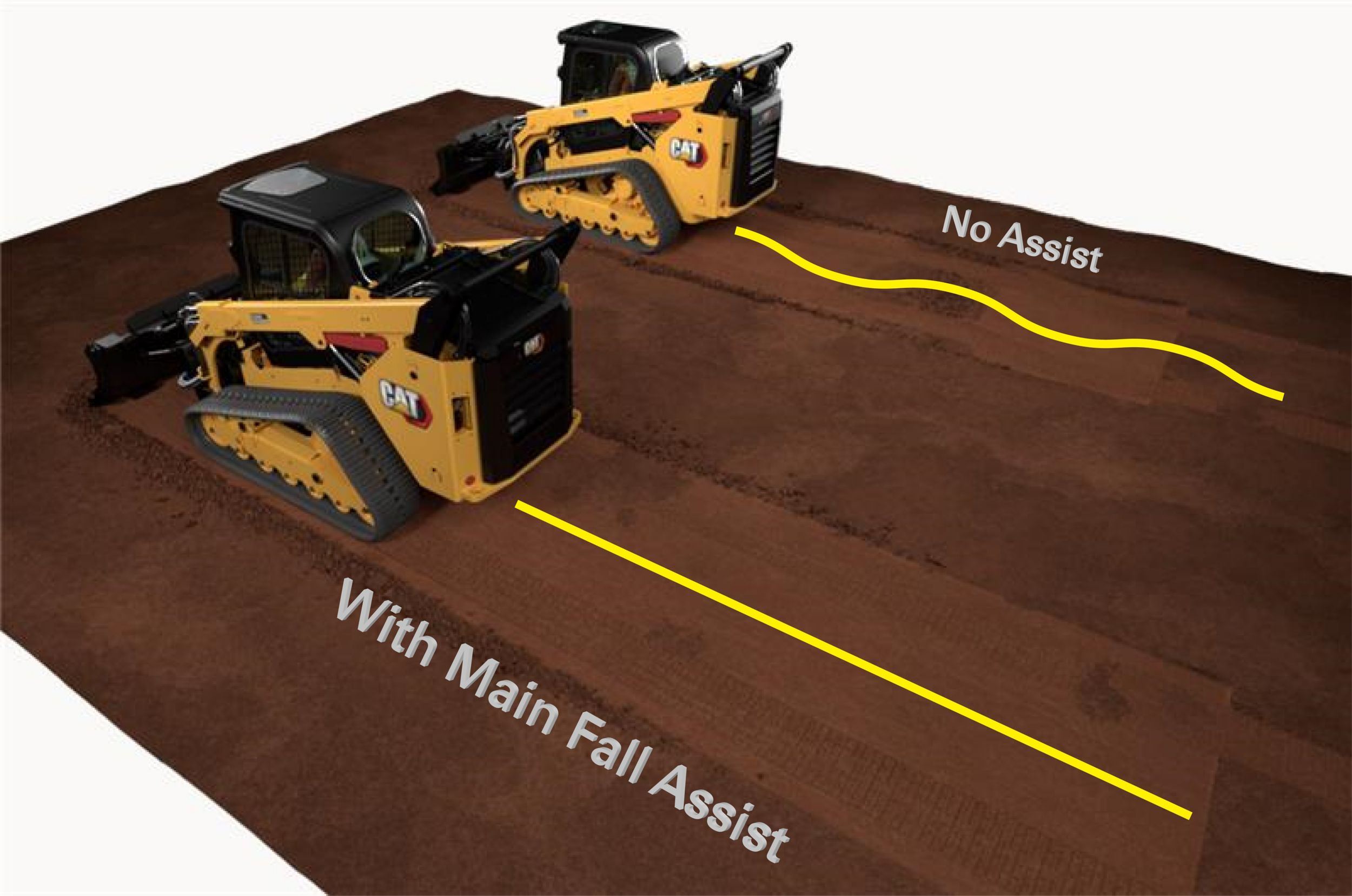

The Assist feature on smart dozer blades make achieving a smooth grade easier with fewer passes, reducing the washboard effect common in skid steer loader (SSL) and compact track loader (CTL) dozer attachments. While the operator stays in control, the blade and machine work together to maintain flatness by using on-screen feedback to build or cut material to the desired mainfall.

MEMORIZE SLOPE
RETURN TO SAVED SLOPE
MIRROR
RESET TO ZERO

Product Specifications for 2342 mm (92 in), Smart

Blade Width	92 in 2337 mm
Width - Fully Angled	80.7 in 2049 mm
Maximum Blade Angle - Right/Left of Center	30 degrees 30 degrees
Tilt Angle Range	+/-10 degrees +/-10 degrees
Blade Height	28.2 in 716 mm
Overall Height	34.6 in 878 mm
Length	40.5 in 1028 mm
Weight	1164 lb 528 kg
Cutting Edge Thickness	0.6 in 16 mm
Required Hydraulics	Standard Flow w/14 pin Electrical Standard Flow w/14 pin Electrical
Optimal Hydraulic Flow	42-86 L/min (11-23 gpm) 42-86 L/min (11-23 gpm)
Optimal Hydraulic Pressure	145-235 bar (2100-3400 psi) 145-235 bar (2100-3400 psi)
Interface Type	Skid Steer Coupler Skid Steer Coupler
