Overview
Cat® Box Blades are designed for grading and leveling. Each model is designed to operate both manually and automatically with the use of Laser or GPS grading systems.

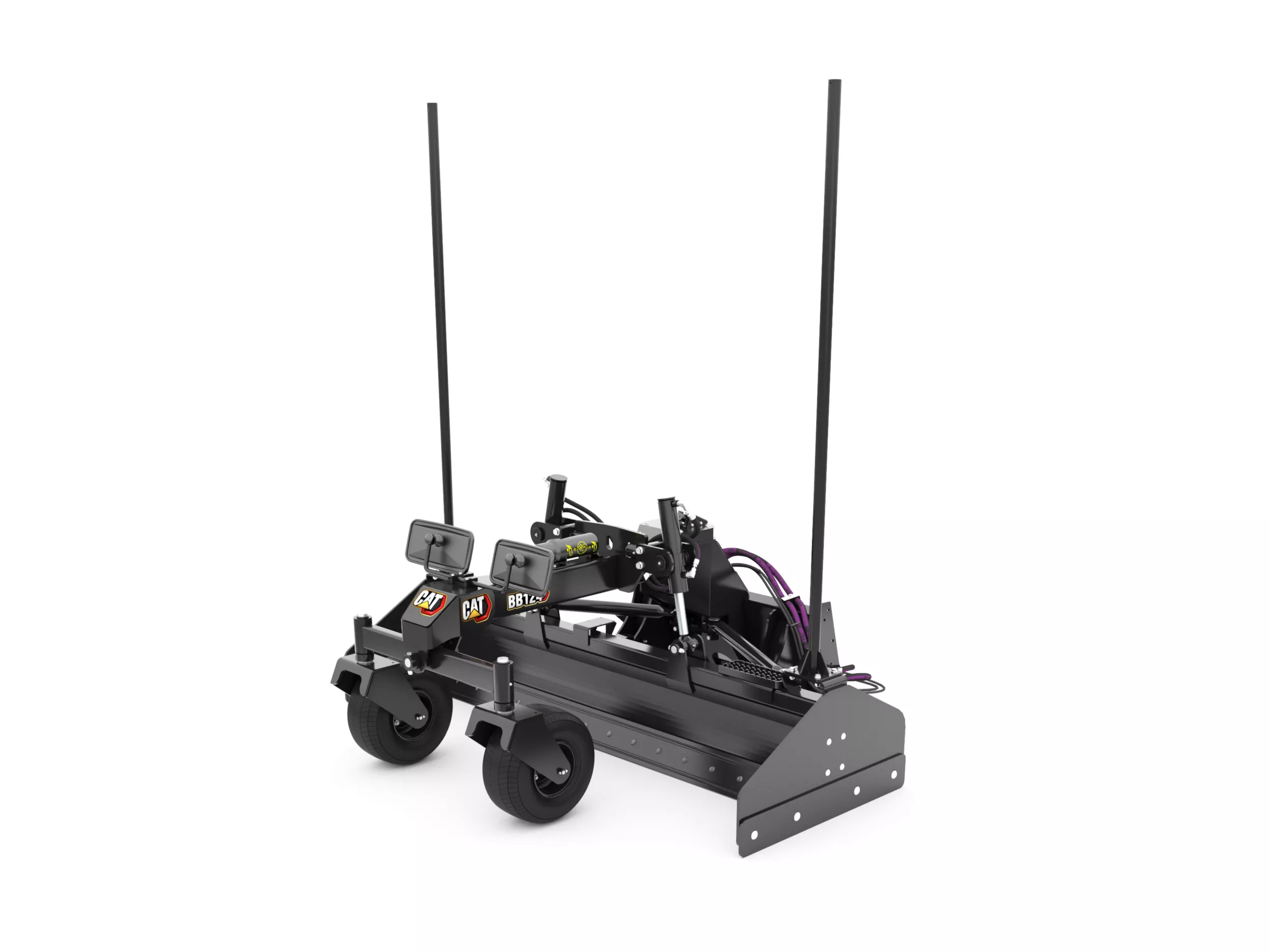

Box Blades BB124
Request A Price Shop NowKey Specs
- Overall Width
- 99.4 in
- 2526 mm
- Working Width
- 95.9 in
- 2436 mm
- Optimal Hydraulic Flow
- 30-85 L/min (8-22 gpm)
- 30-85 L/min (8-22 gpm)
Features At A Glance
Displaying 1-6 of 11
Application
AccuGrade™ ready, the Box Blade is designed for grading and leveling of large commercial properties, housing pads, roadways, and parking lots.
Curved Moldboards
Front and rear curved moldboards allow for material to roll and fold, improving capacity and performance. Flowing material will easily find low spots and improve grading and leveling performance.
Wear Indicating Cutting Edges
Wear indicating cutting edges feature 20% more wear material on the ground engaging section of the edge and also indicate when it is time to flip or replace the edge.
Dual Parabolic Mirrors
Dual parabolic mirrors provide full visibility to the front cutting edge allowing the operator to identify how much the blade is loading and see out to the corners of the Box Blade.
Centrally Located Electronics
Technology components are centrally located and simply route to their respective harnesses back to this location on the tool. Then, a single harness routes to the control module in the cab or on the tool.
Protected Hydraulic Valve and ECM
The hydraulic valve and ECM are enclosed and mounted within the frame of the tool, protected from damage.
Product Specifications for BB124
| Overall Width | 99.4 in 2526 mm |
| Working Width | 95.9 in 2436 mm |
| Optimal Hydraulic Flow | 30-85 L/min (8-22 gpm) 30-85 L/min (8-22 gpm) |
| Requires Full Work Tool Control with Both Joysticks | Yes Yes |
| Optimal Hydraulic Pressure | 140-170 bar (2031-2466 psi) 140-170 bar (2031-2466 psi) |
| Overall Length | 81.2 in 2062 mm |
| Overall Height | 106.1 in 2694 mm |
| Weight | 2149.5 lb 975 kg |
| Tilt Angle Range | 15° Left/Right 15° Left/Right |
| Raise | 5 in 127 mm |
| Lower | 4 in 102 mm |
| Interface Type | Skid Steer Coupler Skid Steer Coupler |
See how BB124 compares against frequently compared products.
Blades
BB124
Selected
- Overall Width
- 99.4 in
- 2526 mm
- Working Width
- 95.9 in
- 2436 mm
- Optimal Hydraulic Flow
- 30-85 L/min (8-22 gpm)
- 30-85 L/min (8-22 gpm)
Blades
BB121
- Overall Width
- 87.4 in
- 2221 mm
- Working Width
- 83.9 in
- 2131 mm
- Optimal Hydraulic Flow
- 30-85 L/min (8-22 gpm)
- 30-85 L/min (8-22 gpm)
