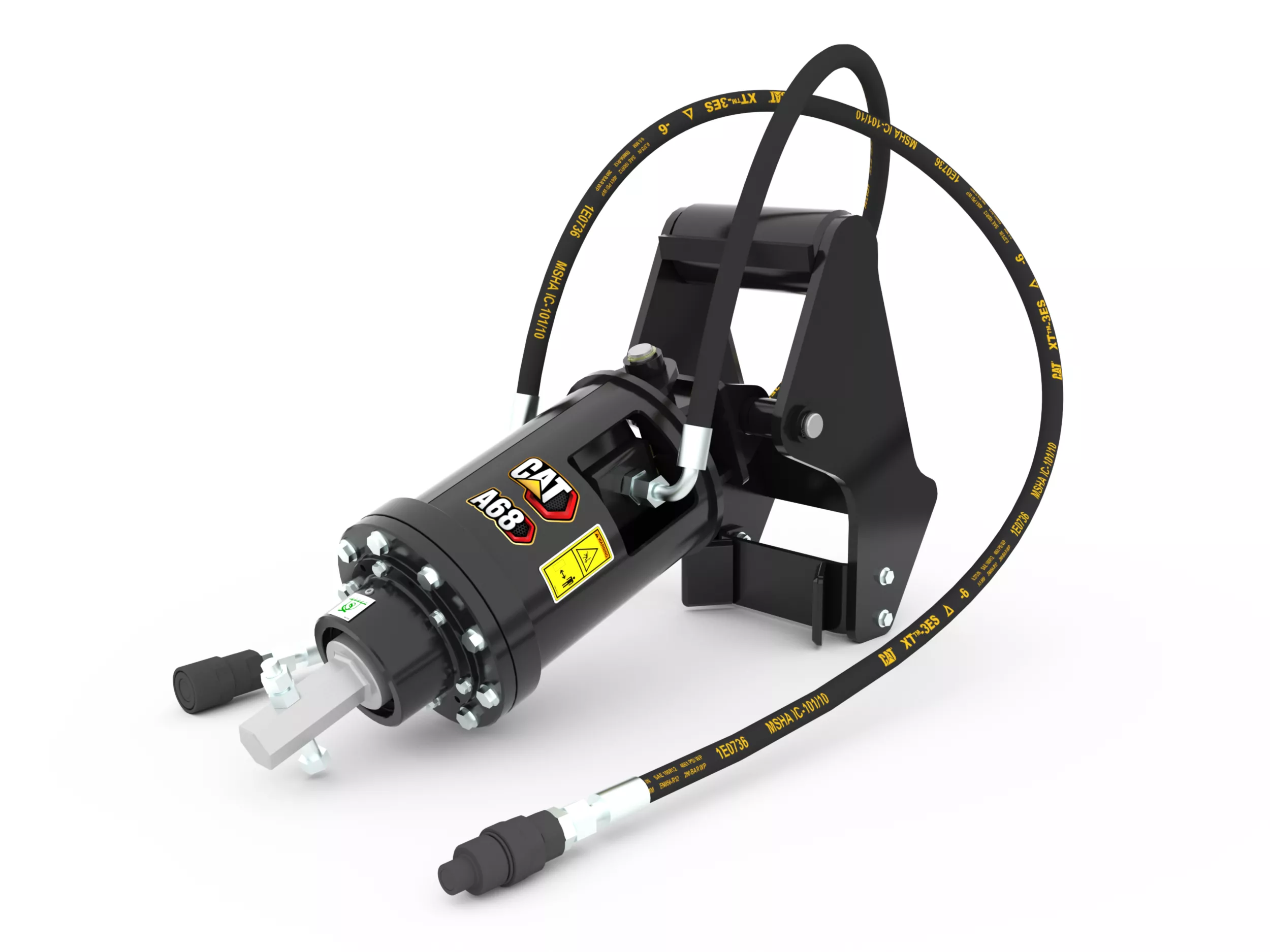

Augers A68, 1/4 Yard Pin Lock

Name: A68 Auger For 1/4 Yard Pin Lock Coupler Backhoe Loaders
Brand: Cat

New Used Rental

Request A Price Shop Now

Key Specs

Drive Shaft Torque at Maximum Pressure: 5037.5 lb/ft; 6830 N·m

Drive Method: Gerotor Motor - Double Planetary Reduction; Gerotor Motor - Double Planetary Reduction

Mounting Bracket Design: Backhoe Loader 1/4 yd Pin Lock; Backhoe Loader 1/4 yd Pin Lock

A68, 1/4 Yard Pin Lock
Change model

Overview

Cat® Augers are used to drill holes for footings, fencing, sign posts, trees and shrubs in construction, agricultural and landscaping applications.

Features At A Glance

Displaying 1-6 of 7

Application

Cat® Augers are used to drill holes for footings, fencing, sign posts, trees and shrubs in construction, agricultural and landscaping applications.

Multiple Drive Systems

Three different drive systems, all designed with the right amount of speed and torque for working in a broad range of soil types.

A23 feature a variable speed, bi-directional, gerotor style hydraulic motor that generates optimal bit speed and output torque for light to moderate duty work.
A41 features a variable speed, bi-directional, single reduction planetary drive gerotor style hydraulic motor mounted to a planetary gear box for optimal bit speed and output torque for moderate to heavy-duty applications.
A68 features variable speed, bi-directional, double reduction planetary drive hydraulic gear motor mounted to a planetary gear box for optimal bit speed and output torque for moderate to heavy-duty, high performance drilling requirements.

Rugged Bits for Every Application

Rugged bits are adaptable to a number of projects. Standard bits, tree bits, industrial bits and standard rock drill head bits (bolt-on) are offered to cover a wide variety of applications and ground conditions.

Bit Extensions and Adapters

Various extensions allow for digging deeper and adapting to round or hex shaft bit designs. Retention pin reduces time to auger flight changes.

Articulated Joint

Articulated joint ensures auger hangs straight, independent of machine positioning.

Mechanical Swing Stops

Mechanical swing stops protect from auger over swing.

Cat® Augers are used to drill holes for footings, fencing, sign posts, trees and shrubs in construction, agricultural and landscaping applications.

Three different drive systems, all designed with the right amount of speed and torque for working in a broad range of soil types.

A23 feature a variable speed, bi-directional, gerotor style hydraulic motor that generates optimal bit speed and output torque for light to moderate duty work.
A41 features a variable speed, bi-directional, single reduction planetary drive gerotor style hydraulic motor mounted to a planetary gear box for optimal bit speed and output torque for moderate to heavy-duty applications.
A68 features variable speed, bi-directional, double reduction planetary drive hydraulic gear motor mounted to a planetary gear box for optimal bit speed and output torque for moderate to heavy-duty, high performance drilling requirements.

Various extensions allow for digging deeper and adapting to round or hex shaft bit designs. Retention pin reduces time to auger flight changes.

Articulated joint ensures auger hangs straight, independent of machine positioning.

Mechanical swing stops protect from auger over swing.

Variable speed, bi-directional, double reduction planetary drive hydraulic gear motor mounted to a planetary gear box for optimal bit speed and output torque for moderate to heavy-duty, high performance drilling requirements.

Product Specifications for A68, 1/4 Yard Pin Lock

Drive Shaft Torque at Maximum Pressure	5037.5 lb/ft 6830 N·m
Drive Method	Gerotor Motor - Double Planetary Reduction Gerotor Motor - Double Planetary Reduction
Mounting Bracket Design	Backhoe Loader 1/4 yd Pin Lock Backhoe Loader 1/4 yd Pin Lock
Required Hydraulics	High Flow XPS High Flow XPS
Optimal Hydraulic Flow	95-130 L/min (25-34 gpm) 95-130 L/min (25-34 gpm)
Optimal Hydraulic Pressure	207-290 bar (3002-4206 psi) 207-290 bar (3002-4206 psi)
Overall Width - With Bracket	45.4 in 1152 mm
Overall Length - With Bracket	26.3 in 668 mm
Overall Height	43.2 in 1097 mm
Housing Diameter	11 in 280 mm
Swing Range (fore/aft)	160 degrees 160 degrees
Swing Range (L/R)	105 degrees 105 degrees
Weight	443.1 lb 201 kg
Motor Displacement	2.67 in³ 44 cm³
Bit Speed at Maximum Flow	81 rpm 81 rpm
Hex Output Shaft Size	2 in 51 mm

Product Specifications for A68, 1/4 Yard Pin Lock

Download Print

Drive Shaft Torque at Maximum Pressure	5037.5 lb/ft 6830 N·m
Drive Method	Gerotor Motor - Double Planetary Reduction Gerotor Motor - Double Planetary Reduction
Mounting Bracket Design	Backhoe Loader 1/4 yd Pin Lock Backhoe Loader 1/4 yd Pin Lock
Required Hydraulics	High Flow XPS High Flow XPS
Optimal Hydraulic Flow	95-130 L/min (25-34 gpm) 95-130 L/min (25-34 gpm)
Optimal Hydraulic Pressure	207-290 bar (3002-4206 psi) 207-290 bar (3002-4206 psi)
Overall Width - With Bracket	45.4 in 1152 mm
Overall Length - With Bracket	26.3 in 668 mm
Overall Height	43.2 in 1097 mm
Housing Diameter	11 in 280 mm
Swing Range (fore/aft)	160 degrees 160 degrees
Swing Range (L/R)	105 degrees 105 degrees
Weight	443.1 lb 201 kg
Motor Displacement	2.67 in³ 44 cm³
Bit Speed at Maximum Flow	81 rpm 81 rpm
Hex Output Shaft Size	2 in 51 mm
