Augers A68, 5 Ton Mini Excavators

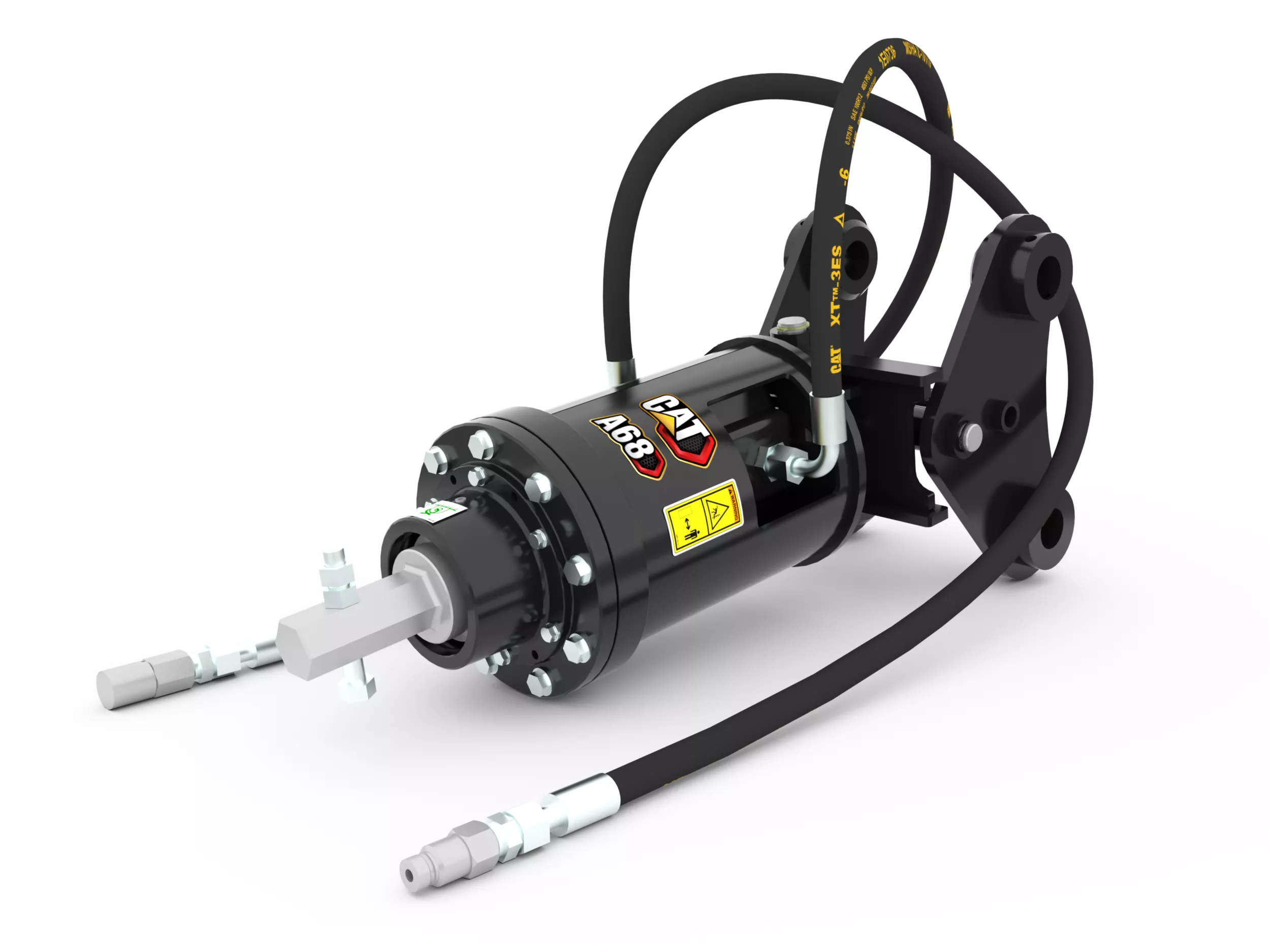

Name: A68 Auger For 5 Ton Mini Excavators
Brand: Cat

New Used Rental

Request A Price Shop Now

Key Specs

Drive Shaft Torque at Maximum Pressure: 5034.6 lb/ft; 6826 N·m

Drive Method: Gerotor Motor - Double Planetary Reduction; Gerotor Motor - Double Planetary Reduction

Mounting Bracket Design: 8 Ton Mini Excavator Pin On; 8 Ton Mini Excavator Pin On

A68, 5 Ton Mini Excavators
Change model

Overview

Cat® Augers are used to drill holes for footings, fencing, sign posts, trees and shrubs in construction, agricultural and landscaping applications.

Features At A Glance

Displaying 1-6 of 6

Application

Cat® Augers are used to drill holes for footings, fencing, sign posts, trees and shrubs in construction, agricultural and landscaping applications.

Multiple Drive Systems

Three different drive systems, all designed with the right amount of speed and torque for working in a broad range of soil types.

A23 feature a variable speed, bi-directional, gerotor style hydraulic motor that generates optimal bit speed and output torque for light to moderate duty work.
A41 features a variable speed, bi-directional, single reduction planetary drive gerotor style hydraulic motor mounted to a planetary gear box for optimal bit speed and output torque for moderate to heavy-duty applications.
A68 features variable speed, bi-directional, double reduction planetary drive hydraulic gear motor mounted to a planetary gear box for optimal bit speed and output torque for moderate to heavy-duty, high performance drilling requirements.

Rugged Bits for Every Application

Rugged bits are adaptable to a number of projects. Standard bits, tree bits, industrial bits and standard rock drill head bits (bolt-on) are offered to cover a wide variety of applications and ground conditions.

Bit Extensions and Adapters

Various extensions allow for digging deeper and adapting to round or hex shaft bit designs. Retention pin reduces time to auger flight changes.

Articulated Joint

Articulated joint ensures auger hangs straight, independent of machine positioning.

Mechanical Swing Stops

Mechanical swing stops protect from auger over swing.

Cat® Augers are used to drill holes for footings, fencing, sign posts, trees and shrubs in construction, agricultural and landscaping applications.

Three different drive systems, all designed with the right amount of speed and torque for working in a broad range of soil types.

A23 feature a variable speed, bi-directional, gerotor style hydraulic motor that generates optimal bit speed and output torque for light to moderate duty work.
A41 features a variable speed, bi-directional, single reduction planetary drive gerotor style hydraulic motor mounted to a planetary gear box for optimal bit speed and output torque for moderate to heavy-duty applications.
A68 features variable speed, bi-directional, double reduction planetary drive hydraulic gear motor mounted to a planetary gear box for optimal bit speed and output torque for moderate to heavy-duty, high performance drilling requirements.

Various extensions allow for digging deeper and adapting to round or hex shaft bit designs. Retention pin reduces time to auger flight changes.

Articulated joint ensures auger hangs straight, independent of machine positioning.

Mechanical swing stops protect from auger over swing.

Specifications Optional Equipment

Product Specifications for A68, 5 Ton Mini Excavators

Drive Shaft Torque at Maximum Pressure	5034.6 lb/ft 6826 N·m
Drive Method	Gerotor Motor - Double Planetary Reduction Gerotor Motor - Double Planetary Reduction
Mounting Bracket Design	8 Ton Mini Excavator Pin On 8 Ton Mini Excavator Pin On
Required Hydraulics	High Flow XPS High Flow XPS
Optimal Hydraulic Flow	95-130 L/min (25-34 gpm) 95-130 L/min (25-34 gpm)
Optimal Hydraulic Pressure	207-290 bar (3002-4206 psi) 207-290 bar (3002-4206 psi)
Overall Width - With Bracket	13.9 in 354 mm
Overall Length - With Bracket	17.5 in 445 mm
Overall Height	36.1 in 916 mm
Housing Diameter	11 in 280 mm
Swing Range (fore/aft)	60 degrees 60 degrees
Swing Range (L/R)	76 degrees 76 degrees
Weight	324.1 lb 147 kg
Motor Displacement	2.67 in³ 44 cm³
Bit Speed at Maximum Flow	81 rpm 81 rpm
Hex Output Shaft Size	2 in 51 mm

A68, 5 Ton Mini Excavators Optional Equipment

OTHER ATTACHMENTS

Rear step, standard

Product Specifications for A68, 5 Ton Mini Excavators

Download Print

Drive Shaft Torque at Maximum Pressure	5034.6 lb/ft 6826 N·m
Drive Method	Gerotor Motor - Double Planetary Reduction Gerotor Motor - Double Planetary Reduction
Mounting Bracket Design	8 Ton Mini Excavator Pin On 8 Ton Mini Excavator Pin On
Required Hydraulics	High Flow XPS High Flow XPS
Optimal Hydraulic Flow	95-130 L/min (25-34 gpm) 95-130 L/min (25-34 gpm)
Optimal Hydraulic Pressure	207-290 bar (3002-4206 psi) 207-290 bar (3002-4206 psi)
Overall Width - With Bracket	13.9 in 354 mm
Overall Length - With Bracket	17.5 in 445 mm
Overall Height	36.1 in 916 mm
Housing Diameter	11 in 280 mm
Swing Range (fore/aft)	60 degrees 60 degrees
Swing Range (L/R)	76 degrees 76 degrees
Weight	324.1 lb 147 kg
Motor Displacement	2.67 in³ 44 cm³
Bit Speed at Maximum Flow	81 rpm 81 rpm
Hex Output Shaft Size	2 in 51 mm

A68, 5 Ton Mini Excavators Optional Equipment

OTHER ATTACHMENTS

Rear step, standard
