How to Install Cat^® CapSure™ on Ripper Shanks

Estimated read time: 2 minutes

When it’s time to change your shank or bucket tips, efficiency matters. The Cat^® CapSure™ hammerless system uses a secure 180-degree retainer design that eliminates the need for hammers or pry tools, reducing risk and saving time on the jobsite. This durable retention system makes tip swaps simple and repeatable across a wide range of Cat machines.

Watch the video to explore tip options and follow step-by-step removal and installation guidance. We’re working on a dozer ripper, but CapSure installation works the same way for excavators and wheel loaders, too.

CapSure Tips for Excavator Buckets

As you select CapSure tips for your excavator, keep your jobsite conditions top of mind.

Penetration Plus tips are a popular choice for many standard applications.
Heavy Duty or Heavy Penetration tips work well in tougher conditions.
Heavy Duty Abrasion tips are for more abrasive materials like sand, gravel and shot rock.

CapSure for Wheel Loader Buckets

Options for your wheel loader include bucket tips and sidebar protectors. Tips are designed for a range of jobsite conditions:

Heavy Duty Abrasion for sand, gravel and shot rock.
Heavy Penetration for high-impact, hard-to-penetrate materials.
Heavy Duty tips can be considered the baseline options.
Penetration Plus tips self-sharpen as they wear.

Additionally, you can find hammerless CapSure options for:

Mechanically attached adapter systems (MAA), which use a bolt-in wedge method to tighten a C-clamp. This locks the adapter securely in place every time. The side-pin nose of the bucket tips is designed for CapSure hammerless retention.
CapSure shrouds, which are designed for high-abrasion bucket systems. Most shrouds fit base edges with flush-mount adapters.

CapSure for Dozer Rippers

When choosing CapSure tips for dozer rippers, consider your application and ground conditions:

Centerline ripper tips have wear material on both sides, and you can reverse them to help extend their life.
Short Centerline tips are designed for the toughest applications.
Intermediate Centerline tips work well in less severe conditions.
Penetration ripper tips are best if your work requires breaking through hard surfaces. Choose:
- Long Penetration tips if breakage isn’t a concern.
- Intermediate Penetration tips for more abrasive conditions.

Don’t know which CapSure tips are best for your jobsite? Your Cat dealer can help you select the right tips for your operation.

How To Remove CapSure Tips

Use a breaker bar to turn the retainer 180 degrees and unlock it.
Slide the tip off the adapter.
Remove the old pin and retainer from the adapter hole.

How To Install CapSure Tips

Insert the new pin and then the new retainer into the adapter hole.
Slide the tip onto the adapter.
Use the breaker bar to turn the retainer 180 degrees in the opposite direction to lock the tip into place.

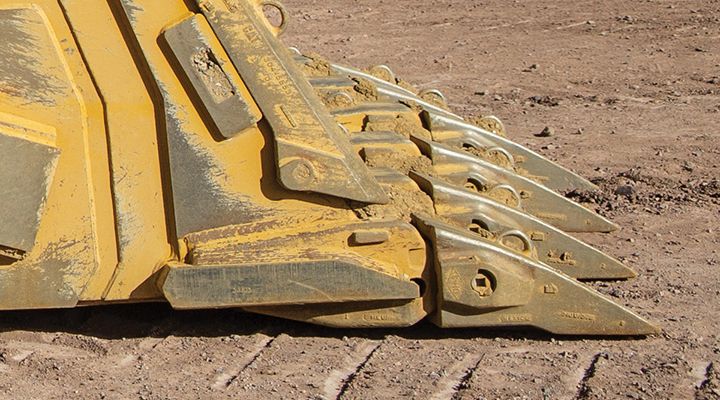

close up of bucket teeth on an excavator

of

You should always check your Operation and Maintenance Manual (OMM) for proper safety procedures and always wear appropriate personal protective equipment (PPE).

Explore Cat ground engaging tools to choose the tips that fit your toughest jobs.

Answers About CapSure

Q: What is Cat CapSure?
A: CapSure is a hammerless retention system for some Cat ground engaging tools (GET). Download our CapSure guide.

Q: How do I remove CapSure tips?
A: Use a breaker bar to turn the retainer 180 degrees. Slide the tip off the adapter. Remove the old pin and retainer.

Q: How do I install CapSure tips?
A: Insert the new pin and retainer into the adapter hole. Slide the tip on. Turn the retainer 180 degrees in the opposite direction to lock it into place.
