Orange Peel Grapples GSV425 4-Tine,1150-Liter Orange Peel Grapple

Request A Price Shop Now

Key Specs

Capacity: 1.50 yd³; 1150 l

Maximum Lift Capacity: 22046 lb; 10000 kg

Shell Type Options: Semi-open; Semi-open

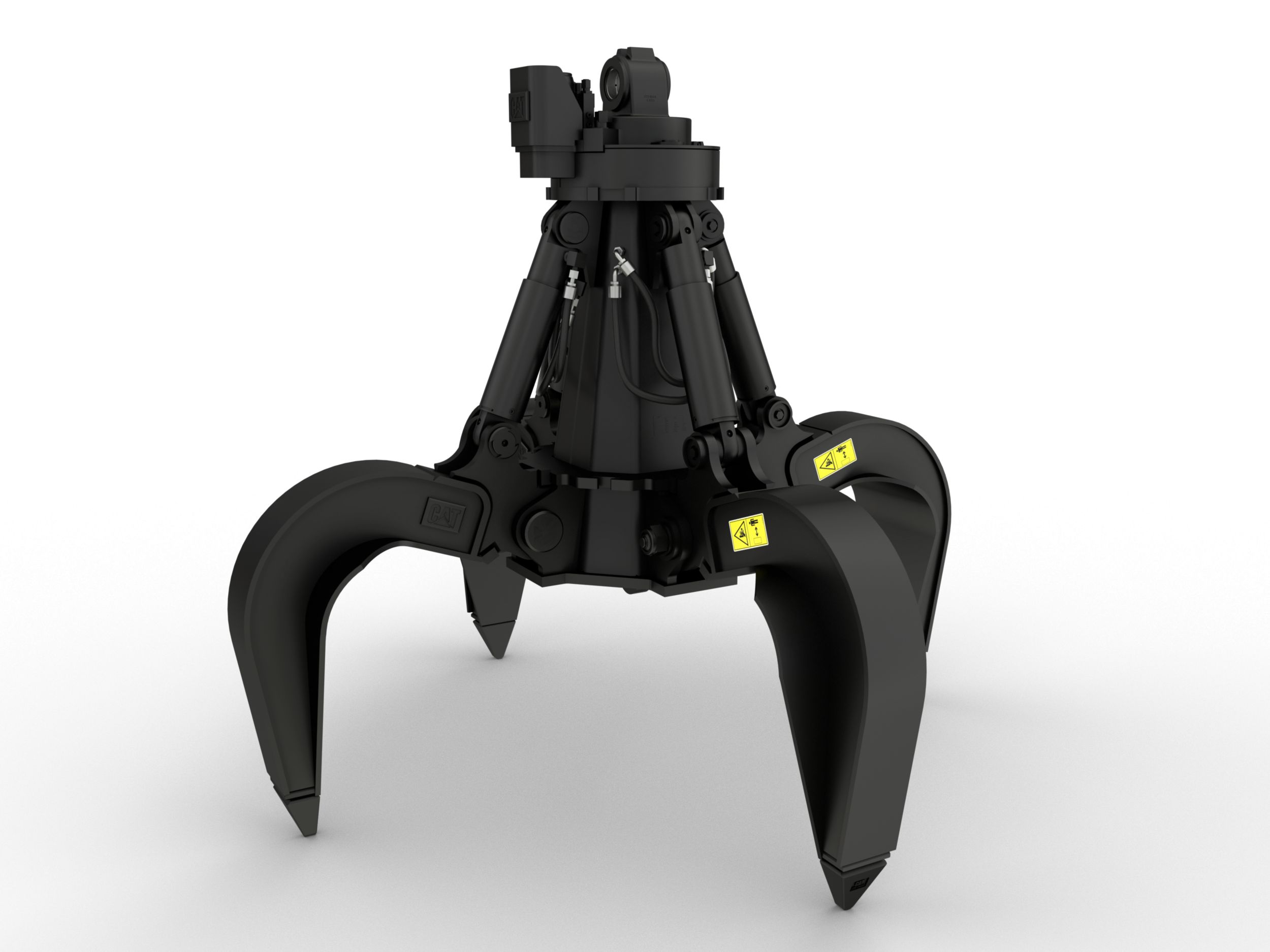

GSV425 4-Tine,1150-Liter Orange Peel Grapple
Change model

Overview

Cat® GSV Orange Peel Grapples include models and sizes for a wide range of applications. With faster cycle times and increased capacities, GSV Grapples allow you to move more while spending less. A more efficient product design increases the grapple's overall productivity and reduces maintenance costs. The addition of a GC model to this product line provides an economical option while delivering the same Cat quality you expect.

Features At A Glance

Move more tons per hour with faster cycle times.
Increase hydraulic flow capacity up to 160 percent with a new rotation system.
Improve your overall fill factor up to 140-200 percent because of refined tine curvature.
Cat Machines are pre-programmed with optimum performance settings for your grapple to maximize the pairing and efficiency of the machine and grapple.
Reach new heights and increase your swing control. The compact height of GSH grapples extends your capabilities and is ideal for indoor applications.

Grapple life is prolonged because of lighter, force distributing cast pieces in place of welds.
Prevent cylinders from overextending, and avert unnecessary wear on hinge points and tine tips with heavy duty, abrasion resistant upper and lower stops on the grapple's housing.
Strength you can count on. Solid construction inner tines and tips are built of high grade steel, resisting abrasion and metal-on-metal wear. Hinge points are cast eliminating weak points on the frame.
Increase wear life with easy to replace, cast tine tips.

Spend more time working with decreased maintenance time.Usage before first service interval is increased up to 250 percent and ground level grease points are safer and easier to use.
Integral hydraulic components have been rerouted and are protected inside the tine, decreasing tension on hoses and eliminating interference with materials.
Easy, inside-the-tine access to the hydraulics through removable panels. Panels also include dust seals to protect the critical parts inside the tines.
Maintain a safe working environment by using the Mounting Bracket Aid which allows the bracket to stay in an upright position while installing the grapple to the machine.

Meet your specific application needs with 4 or 5-tine models and optional semi-open or closed tine styles.
- Four tines - square footprint, clean corners in rail cars and trailers. Safe grab closure for bulky goods such as car bodies.
- Five tines - optimal retention of smaller materials.
- Semi-open tines work best for applications where larger steel scrap or car bodies are being moved.
- Closed tines are optimal in instances where smaller, shredded materials are the primary use.
GSH420 and GSH520 models now come with a standard lift eye on the bottom side of the housing where a magnet can be mounted.
Other GSH models have the option of including a lift eye when ordering the grapple.

Product Specifications for GSV425 4-Tine,1150-Liter Orange Peel Grapple

Capacity	1.50 yd³ 1150 l
Maximum Lift Capacity	22046 lb 10000 kg
Shell Type Options	Semi-open Semi-open
Operating Weight	3576 lb 1622 kg
Tine Count	4 4
Material Handler Minimum	25 ton (US) 25 ton (US)
Material Handler Maximum	40 ton (US) 40 ton (US)
Excavator Minimum	20 ton (US) 20 ton (US)
Excavator Maximum	30 ton (US) 30 ton (US)

Product Specifications for GSV425 4-Tine,1150-Liter Orange Peel Grapple

Download Print

Capacity	1.50 yd³ 1150 l
Maximum Lift Capacity	22046 lb 10000 kg
Shell Type Options	Semi-open Semi-open
Operating Weight	3576 lb 1622 kg
Tine Count	4 4
Material Handler Minimum	25 ton (US) 25 ton (US)
Material Handler Maximum	40 ton (US) 40 ton (US)
Excavator Minimum	20 ton (US) 20 ton (US)
Excavator Maximum	30 ton (US) 30 ton (US)
